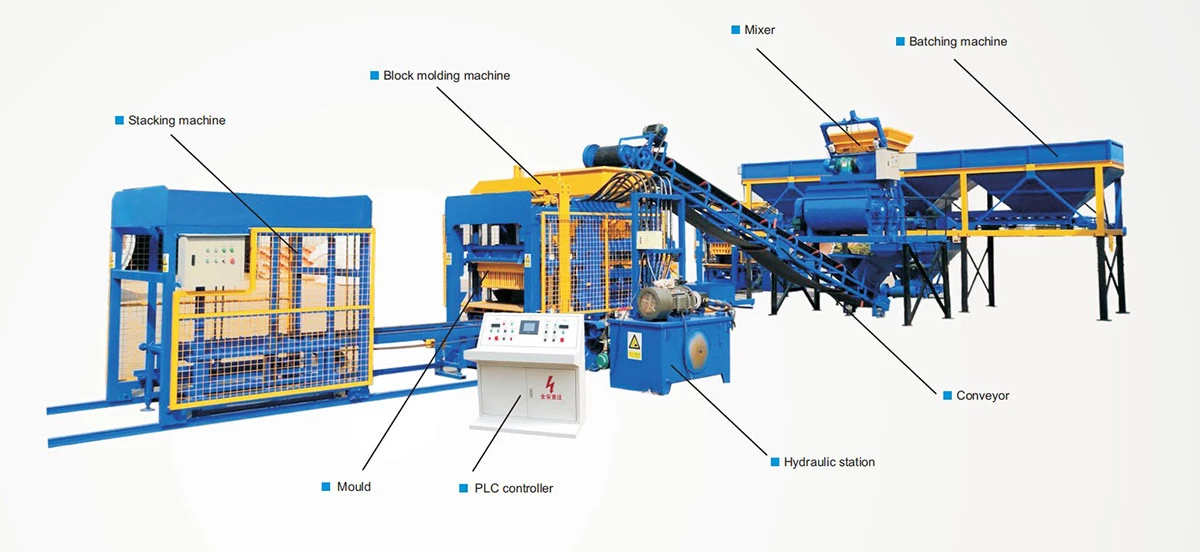

Full Automatic Block Machine
- The high degree of automation, high production capacity, save labor.
- Modular design and layout, the required products can be customized according to the customer’s requirement to meet individual needs;
- Generally used in the production of hollow bricks, solid blocks, paving bricks, and curb bricks. grassed bricks and other special brick types.
- High-quality finished bricks, high-profit margins for special brick types, and high return on investment.
Full automatic block machine production line available model:
- QT4-15
- QT6-15
- QT8-15
- QT10-15
- QT12-15
In order to quote you most suitable model, pls confirm:
- Which size blocks you want to produce? ( Length X width X height).
- How many pcs blocks you want to produce per hour?
Materials proportion Suggestion
This is the most popular proportion in making block making machines:
1. Cement,sand,stone (standard concrete block):
| Raw Materials | Photo | Proportion |
|---|---|---|
| Water |  | 0.03 |
| Cement |  | 9-12% |
| River sand |  | 0.4 |
| Crushed stone |  | 0.45 |
| Other specify | You can change the proportion depend on your needs. This block is heavy,but strong | |
2. Cement,slag (light concrete block):
| Raw Materials | Photo | Proportion |
|---|---|---|
| Water | | 3% |
| Cement | | 9-12% |
| Cement |  | 80-90% |
| Other specify | You can change the proportion depend on your needs. This block is light, not so strong | |
3. Cement,sand,stone,slag
| Raw Materials | Photo | Proportion |
|---|---|---|
| Water | | 0.03 |
| Cement | | 9-12% |
| Sand | | 10-20% |
| Stone | | 30-40% |
| slag | | 25-50% |
| Other specify | You can change the proportion depend on your needs. This block is a little light, strong | |
4. Block weight with different proportion(For reference)
| Photo | Block size | Block size | Block size |
|---|---|---|---|
 | 400x200x200mm | Cement,stone,sand | 16-18kg |
| Cement,slag | 10-12kg | ||
| Cement,stone,sand,slag | 10-12kg | ||
 | 400x250x200mm | Cement,stone,sand | 18-20kg |
| Cement,stone,sand | 12-14kg | ||
| Cement,stone,sand,slag | 13-15kg |
Block moulds
