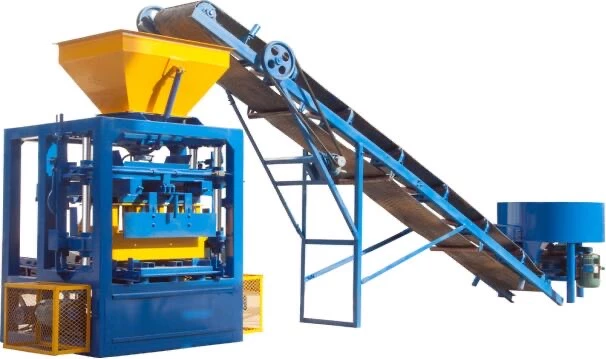

Semi Automatic Block Machine
- The layout is compact small, and the required production workshop is small.
- Simple system, stable and reliable performance;
- Generally used in the production of hollow blocks and solid blocks.
- Small investment and quick return.
QT4-24 Block machine production line Specs
| Dimension of host machine | 1850x11880x2240 | Host machine power | 22kw |
|---|---|---|---|
| Weight of host machine | 1.56t | Vibration force | 35.5KN |
| Molding period | 24s | Mixer model | JQ350 |
| Voltage | Adopt to local voltage | Pallet size | 850x550x25mm |
| workshop area | 160m2 | ||
Main blocks capacity
| NO. | Samples | Size (L*W*H) mm | Qty/Mould | PCS/Hour | PCS/Shift |
|---|---|---|---|---|---|
| 1 |  | 400x200x200mm | 4PCS | 360-450 | 2880-3600 |
| 2 | | 400x100x200mm | 7PCS | 630-840 | 5040-6720 |
| 3 | | 400x150x200mm | 5PCS | 450-600 | 3600-4800 |
| 4 | | 400x250x200mm | 3PCS | 270-360 | 2160-2880 |
| 5 |  | 230x110x70mm | 16PCS | 2304 | 18432 |
| 6 |  | 200x100x60 | 20PCS | 3000 | 24000 |
| 7 |  | 200x163x60 | 6PCS | 864 | 6912 |
| We have the right to improve some according the workmanship and technology developing fact . | |||||

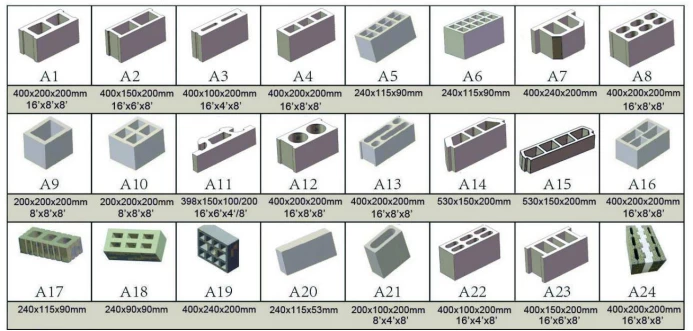

Block Mould
Content Directory
Semi Automatic Block Making Machine delivery
