C-serious Jaw Crusher

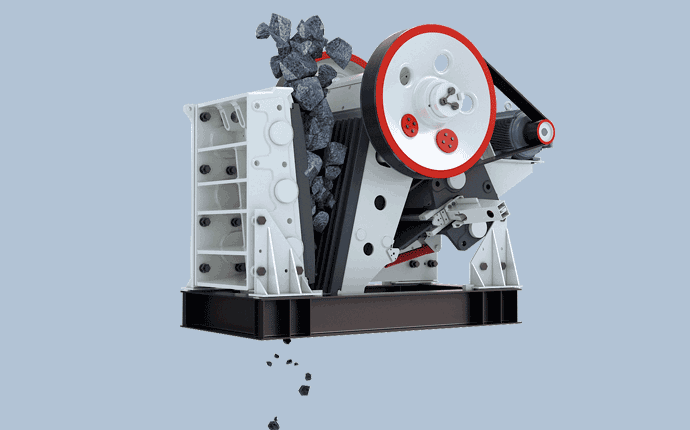

C-serious Jaw Crusher is an efficient and reliable mining machinery and equipment, which is well suited for the coarse and medium crushing of various hard and highly abrasive ores and rocks. Smat machine jaw crusher combines sophisticated crushing technology and production process, and has its own advantages in structural design, working performance, service life, equipment maintenance, etc., becoming an important choice for efficient crushing of hard and corrosive materials.

Working Principle of C Series Jaw Crusher

How does a jaw crusher work? The C Series jaw crusher is mainly composed of a frame part, an eccentric shaft rotating part, a crushing chamber working part, a safety device, a discharge port adjustment device, etc. The crushing method of the C Series jaw crusher is a flexural extrusion type. The motor drives the belt and pulley, and the pulley drives the eccentric shaft to rotate to drive the movable jaw body to swing back and forth and up and down. When the movable jaw pushes the movable jaw plate to move toward the fixed jaw plate, the volume of the crushing chamber decreases, and the material is crushed or split. When the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and the spring, the volume of the crushing chamber becomes larger, and the previously crushed or split material is discharged from the lower discharge port of the jaw plate, realizing continuous circulation and completing the crushing operation.

C series jaw crusher structure

The C series jaw crushing machine adopts special designs such as detachable non-welded structure frame, optimized cavity structure, double wedge adjustment device, integrated motor seat, etc. The C series jaw crushing machine is mainly composed of seven major structures.

The structure of Smat Machine C series jaw crusher is as follows: 1. Jaw crusher motor: provides power source and drives the pulley to perform crushing operation. 2. Jaw crusher pulley: transmits the power of the motor to the eccentric shaft 3. Jaw crusher eccentric shaft: drives the swing of the mobile jaw plate through rotation. 4. Jaw crusher mobile jaw plate: cooperates with the fixed jaw plate to complete the material crushing operation, 5. Jaw crusher fixed jaw plate: cooperates with the mobile jaw plate to limit the crushing range of the material in the crushing chamber, 6. Jaw crusher adjustment device: used to adjust the gap between the mobile jaw plate and the fixed jaw plate to control the particle size of the crushed material 7. Jaw crusher crushing chamber: accommodates the material and completes the crushing operation during the crushing process.

C series jaw crushing machine specification

C Series Jaw Crusher Model	Feed Port Size (mm)	Max Feed Particle Size (mm)	Discharge Port Ddjustment Range (mm)	Processing capacity(t/h)	Speed ​​(r/min)	Power (kw)	Dimensions (mm)
C6X80	520×800	420	60-150	80-290	350	75	2650x1540x1780
C6X100	760×1000	630	70-175	130-420	260	110	3700x2440x2520
C6X110	850×1100	720	80-200	160-550	220	160	3800x2450x2520
C6X125	950×1250	800	100-250	230-760	220	160	4100x2750x2780
C6X145	1100×1450	920	125-275	320-950	220	200	4400x3060x3210
C6X160	1200×1600	1050	150-300	410-1150	220	250	5700x3650x3550
C6X200	1500×2000	1200	175-300	610-1510	220	400	6500x3990x4260

C series jaw crushing machine application areas

What can C series jaw crusher be used for? It has a wide range of applications in the following areas: Mining industry: used in the crushing and beneficiation of ore, and the raw ore is crushed coarsely, medium and finely

Metallurgical industry: used in the crushing and beneficiation process of metallurgical ore, crushing the ore into particles of the required size. Construction industry: used in the production process of building materials, crushing stones into aggregates for construction. Highway and railway: used in highway and railway infrastructure construction, crushing large stones into suitable specifications. Chemical industry: used in the production process of chemical materials, crushing raw materials into particles of the required size

C-serious jaw crusher machine advantages

The C-series jaw crusher is designed with careful details and improved structure, which makes the operation effect better, giving the equipment better production advantages and bringing greater value to users.

Strong feeding capacity

The C-series jaw crusher adopts a deep ∨-shaped crushing chamber to meet greater feeding needs and improve crushing efficiency.

High-strength steel plate toggle plate

The C-serious jaw crusher machine is light and easy to replace. It bends when overloaded, avoiding the damage to the conveyor belt when the traditional cast iron toggle plate breaks and falls.

Multiple options

The C-series jaw crusher can be customized according to different applications. The safe flywheel and drive unit guards protect the operator from moving parts, and the optional integral motor base allows the crusher drive motor to be mounted directly on the rear of the crusher.

Simple installation, operation and maintenance

Smat Machine C-series jaw crushers are modularly designed to save installation time and cost. Installation can be completed in a few days to minimize on-site engineering and manufacturing. The C Series jaw crusher can also be upgraded with an optional automation system, which enables remote monitoring and adjustment of feeder, crusher and conveyor settings. In this way, the jaw crusher can be remotely controlled, making it easier and safer to operate.

C series jaw crushing machine supplier

The C series jaw crusher is a jaw crusher with excellent performance introduced and developed by Smat Machine according to customer market needs. Different from traditional jaw crushers, it has major improvements in crusher motion parameters, structural form, and adjustment methods. The C series jaw crusher occupies a small space, has a larger crushing ratio, and runs more smoothly.

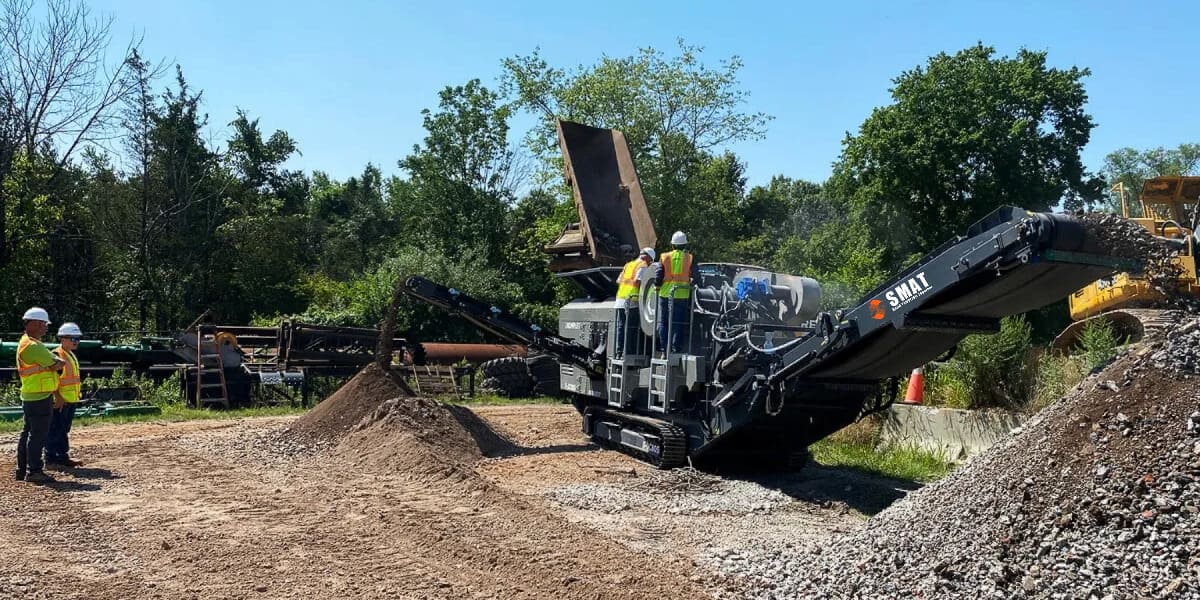

It has more advantages in transportation, installation, maintenance, and adjustment. It is particularly suitable for fixed crushing production lines and mobile crushing stations, which can bring higher benefits and lower losses to production. The C series jaw crusher adopts an innovative modular, non-welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the equipment’s fatigue resistance and operational reliability, and fully guarantees the high yield, high efficiency, and low cost of crushing operations; a variety of flexible installation methods can meet different application options.
