SMAT Mine Grinding Machinery
SMAT offers mine grinding machinery with advanced grinding technology for various ore fineness requirements. Our equipment is able to complete the grinding work with high efficiency and low energy consumption, providing continuous and stable output for mines.
YGM Grinding Mill
SMAT High-Pressure Suspension Grinding Mill has a wide range of finished product sizes, commonly used to produce 80-425 mesh powder. By adding special equipment, it can produce 30-80 mesh coarse powder. The most fine powder could be up to 1000 mesh. Compared with Raymond Mill, the capacity is increased by 10% under the same power condition. Meanwhile, the dust removal effect completely meets the national requirement standard.
| Model | Roller number (pc) | Roller size(LxH)(mm) | Grinding Ring Inner dia. height (mm) | Max. feed Size(mm) | Output size (mm) | Capacity (t/h) | Power (kw) |
Overall dimension LXWXH (mm) |
| YGM65 | 3 | 210-150 | 650×150 | 15 | 0.613-0.033 | 0.4-1.8 | 15 | 4100x3300x4500 |
| YGM65 | 3 | 260-150 | 780×150 | 15 | 0.613-0.033 | 1-3 | 18.5 | 4300x3500x5100 |
| YGM85 | 3 | 270-150 | 830×150 | 20 | 0.613-0.033 | 1.2-4 | 22 | 5300x4100x5200 |
| YGM85B | 3 | 270-150 | 830×150 | 20 | 0.613-0.033 | 1.2-3.5 | 22 | 5300x4100x5200 |
| YGM95 | 4 | 310-190 | 950×190 | 25 | 0.613-0.033 | 1-6 | 45 | 7100x5900x7900 |
| YGM130 | 5 | 410-230 | 1280×230 | 30 | 0.613-0.033 | 1-9.5 | 90 | 7900x8000x9700 |
| YGM160 | 6 | 450-300 | 1600×300 | 35 | 0.613-0.033 | 5-16 | 132 | 12550x5700x8355 |
MTW Grinding Mill
MTW series EURO grinding mill is an updated powder grinding equipment researched by SMAT company, based on introducing European most advanced powder grinding technology and concept, combining with domestic actual producing situation. With the good performance of large capacity, low power consumption,and reasonable structure, it can greatly meet the clients’ requirements on fine powder production.
| Grind Ring Inner Dia. (mm) | φ1100×210 | φ1380×260 | φ1750×300 | φ2150×340 | |||
| Main Roller Speed (r/min) | 120 | 96 | 75 | 65 | |||
| Max Feeding Size (mm) | 30 | 35 | 40 | 50 | |||
| Output Size (mm) | 1.6-0.038 | 1.6-0.038 | 1.6-0.038 | 1.6-0.045 | |||
| Capacity (t/h) | 3-10 | 6-20 | 10-35 | 20-50 | |||
| Power(Kw) | Main Grinder | 75 | 90 | 185 | 280 | ||
| Powder classifier | 7.5 | 11 | 30 | 45 | |||
| Blower | 75 | 90 | 185 | 280 | |||
| Overall Dimension (mm) | 8425×7933×8642 | 10920×9470×10227 | 12195×9555×9916 | 13922×9810×13226 | |||

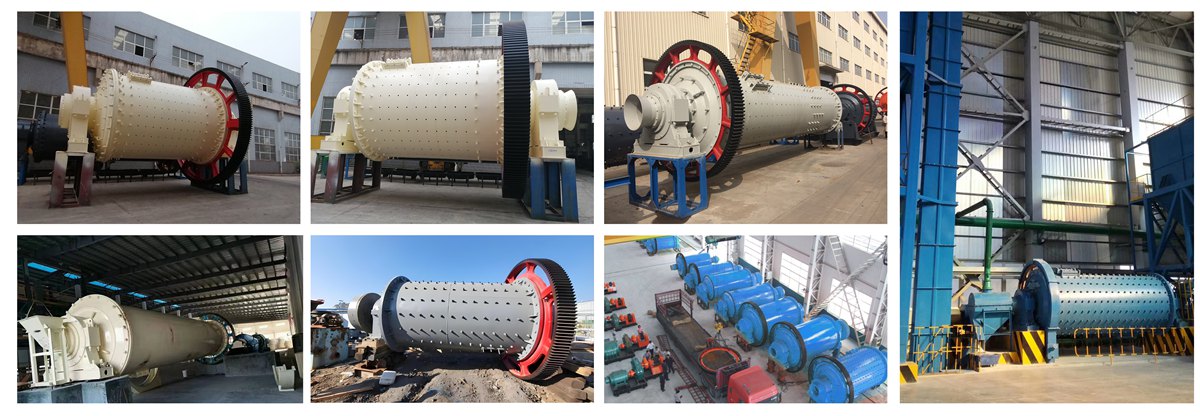

Ball Mill
The ball mill is the key milling equipment after the material has been crushed. It is widely used in cement, silicate, new construction materials, refractory material, chemical fertilizer, ferrous metal, and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and grindable materials.
Technical Advantage
Leading technology to ensure excellent performance. Our mining milling machinery adopts the latest milling technology and is equipped with a high-efficiency milling system and intelligent control device, which ensures stable operation and high production efficiency.
High-efficiency grinding system: optimized grinding chamber and grinding roller design, maximizing the crushing and grinding efficiency of the ore.
Intelligent control system: integrated intelligent control, real-time monitoring of equipment status, improving production safety and operational convenience.
Low Energy Consumption: Innovative design significantly reduces energy consumption, helping customers save operating costs.
Adjustable fineness: the equipment can adjust the grinding fineness according to the demand, adapting to a variety of applications.
Our Customer
Our mining milling machines have been successfully applied in many mining projects worldwide, and customers generally feedback that they are highly efficient and energy-saving.
SMAT Service:
▶Free customized product appearance color and logo. provide ODM support.
▶Adequate stock of original spare parts to ensure the smooth operation of the project.
▶SMAT provides engineers with on-site installation guidance, commissioning, and training services.
▶VIP groups are created for customers. If you have any questions, feel free to give feedback.
▶7*24 hours online free consulting service, including quotation, 2-3 sets of program design, Autocad &3D drawings, and on-site guidance.
▶SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
