Trailer Concrete pump
Concrete mixer pump is a highly efficient construction equipment that integrates mixing and pumping. Our products are shipped to various sites of road construction, bridge construction, and real estate construction all over the world. With the economic development of our country, the demand for infrastructure is not to be underestimated, SMAT has successfully exported to more than 50 countries with our technological innovation and R&D strength in the field of concrete mixer pumps, as well as our product’s high performance.
Concrete mixer pump is a highly efficient construction equipment that integrates mixing and pumping. Our products are shipped to various sites of road construction, bridge construction, and real estate construction all over the world. With the economic development of our country, the demand for infrastructure is not to be underestimated, SMAT has successfully exported to more than 50 countries with our technological innovation and R&D strength in the field of concrete mixer pumps, as well as our product’s high performance.

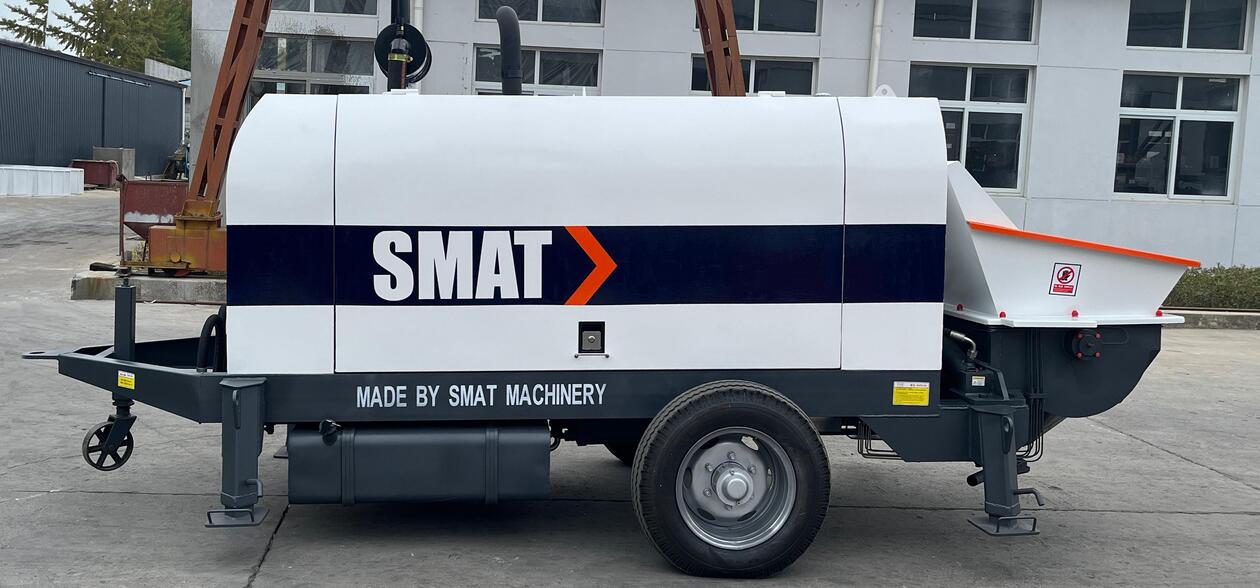

Concrete Trailer Pump Supplier
SMAT, as a top manufacturer of construction industry machinery, focuses on innovative technology to manufacture better quality concrete mixer pumps. Dedicated to providing comprehensive solutions for our global customer partners’ projects.
SMAT has diesel-type and electric-type concrete mixer pumps. According to the category of pumps, there are four main types, which are trailer pump, mixer pump, boom pump, and truck-mounted pump. We can make the corresponding program according to the customer’s demand for the flow rate, pressure, and mixing capacity of the product. The actual vertical height of pumped concrete can reach 80-100 meters and the horizontal distance is 150-300 meters.
Diesel Concrete Trailer Pump

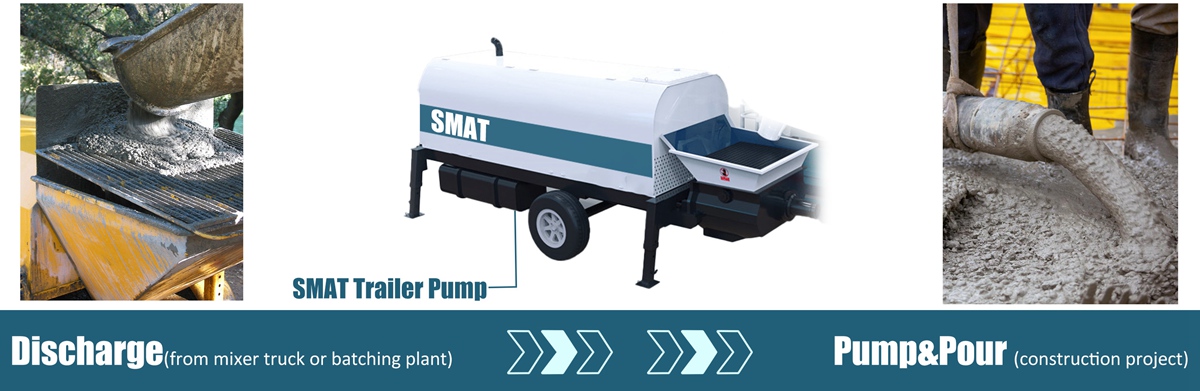

Diesel concrete trailer pump is a concrete delivery equipment powered by diesel engine. It delivers concrete to the construction site through pipelines. This equipment integrates mechanical, electrical and hydraulic technologies and is suitable for concrete pumping operations in environments with no power supply or unreliable power supply.
Diesel HBT-40R Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT40R | 40/26(m³/h) | 10/7.6MPa | 82KW | 40/50mm | 4500KG |
Diesel HBT-60R Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT60R | 67/45(m³/h) | 13/7MPa | 129KW | 40/50mm | 6000KG |
Diesel HBT-80R Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT-80R | 84/45(m³/h) | 18/9MPa | 176KW | 40/50mm | 6900KG |
Diesel HBT-90R Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT-90R | 90(m³/h) | 18/9.3MPa | 199KW | 40/50mm | 7000KG |

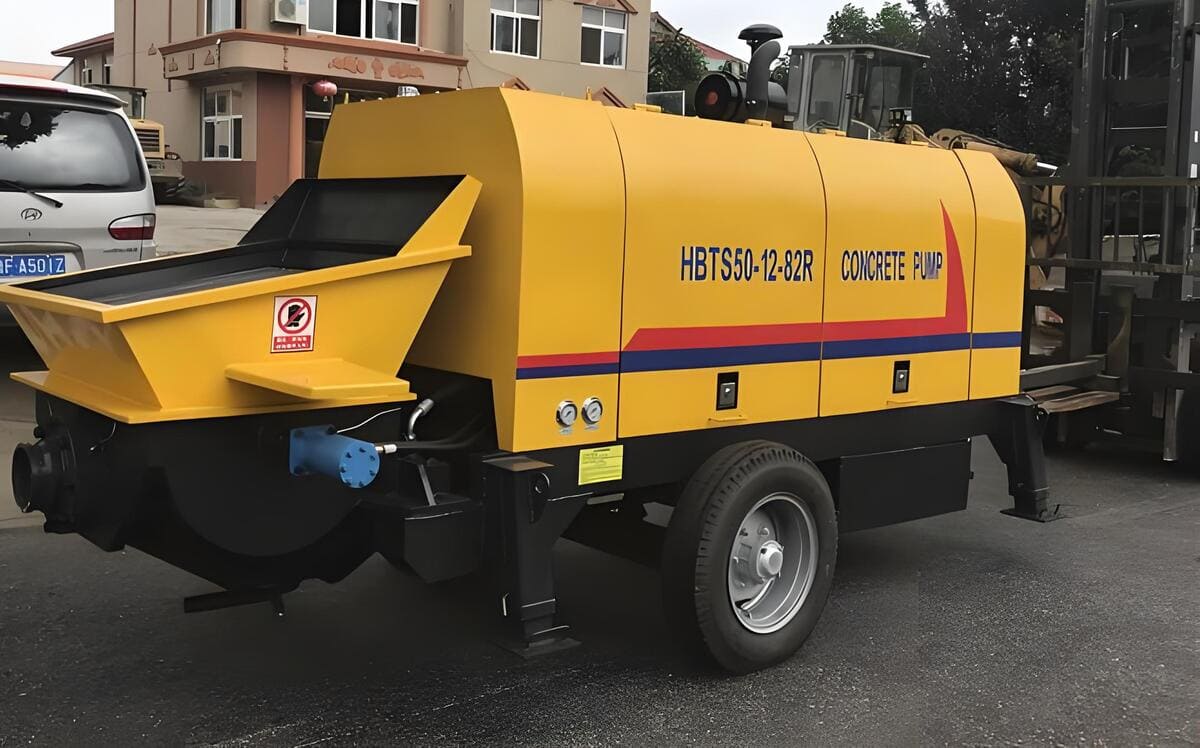

What are the components of diesel concrete pump?
Pump body: It is the core part of the concrete pump, responsible for sucking in and pushing out the concrete. It usually adopts advanced S-tube distribution valve, which can automatically compensate for the wear gap and has good sealing performance.
Diesel engine:
It provides power for the pump. Common ones include Weichai engine and Cummins engine. The engine power range is wide, such as 82kw-176kw.
Hydraulic system:
It includes the main cylinder, distribution cylinder, etc. It generates suction through the hydraulic cylinder and piston system to suck the concrete out of the mixer or hopper, and then push it to the desired position through the pipeline. It adopts imported hydraulic system and high-quality engine, with high-efficiency pumping capacity.
Delivery pipe:
Connect the pump with the construction point to deliver the concrete to the designated location.
Control system:
It includes electrical components and PLC control system, etc. It has remote control function, which makes the operation safer and more convenient.
Lubrication system:
Automatic centralized lubrication system to ensure effective lubrication during machine operation.
Chassis system:
Multi-traction design, self-recovery ability, flexible and maneuverable
Where can diesel concrete pumps be used?
Diesel concrete pumps are widely used in various construction projects, including but not limited to the following areas:
High-rise buildings: used for concrete transportation of high-rise buildings, capable of vertical transportation heights of 120m-260m.
Highway construction: used for pouring concrete pavements in highway construction.
Water conservancy projects: concrete construction of water conservancy facilities such as dams and reservoirs.
Bridge construction: plays an important role in the pouring of concrete on bridge piers, bridge decks and other parts of bridges.
Tunnel construction: used for concrete spraying and pouring inside tunnels.
Construction in the wild or remote areas: Since diesel concrete pumps are self-powered, they are suitable for the wild or remote areas without power supply.

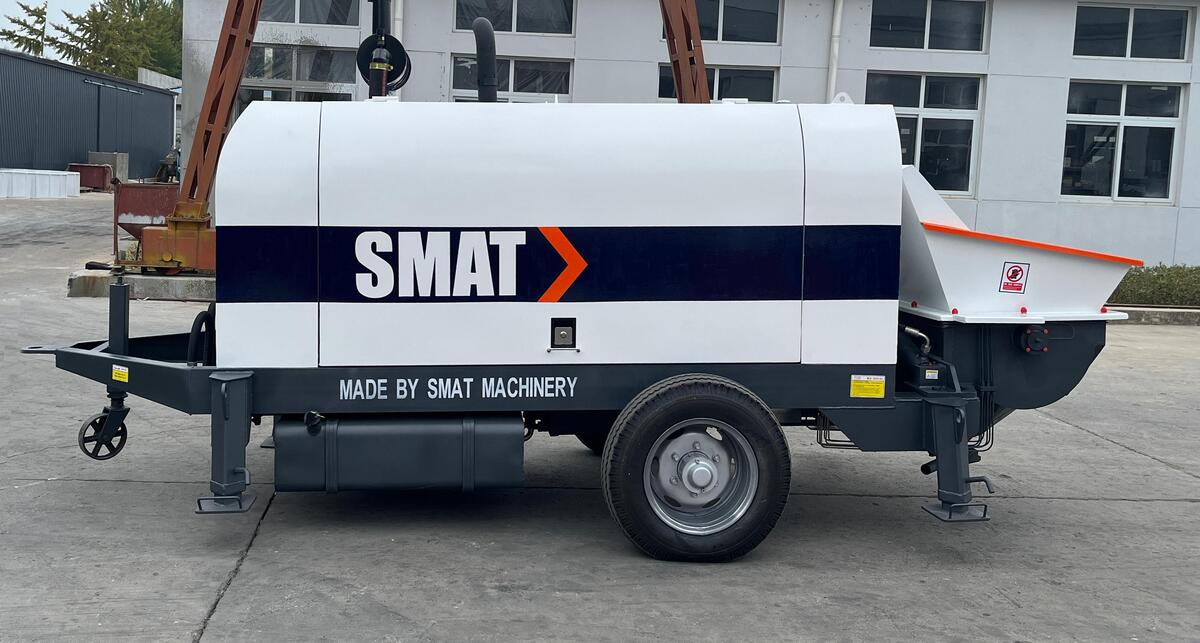

Electric Concrete Trailer Pump
Electric concrete pump is a concrete conveying equipment that uses electricity as a power source. It continuously transports concrete to the construction site through pipelines. This equipment integrates mechanical, electrical and hydraulic technologies and has the characteristics of fast start-up speed, environmental protection and energy saving, and simple operation.

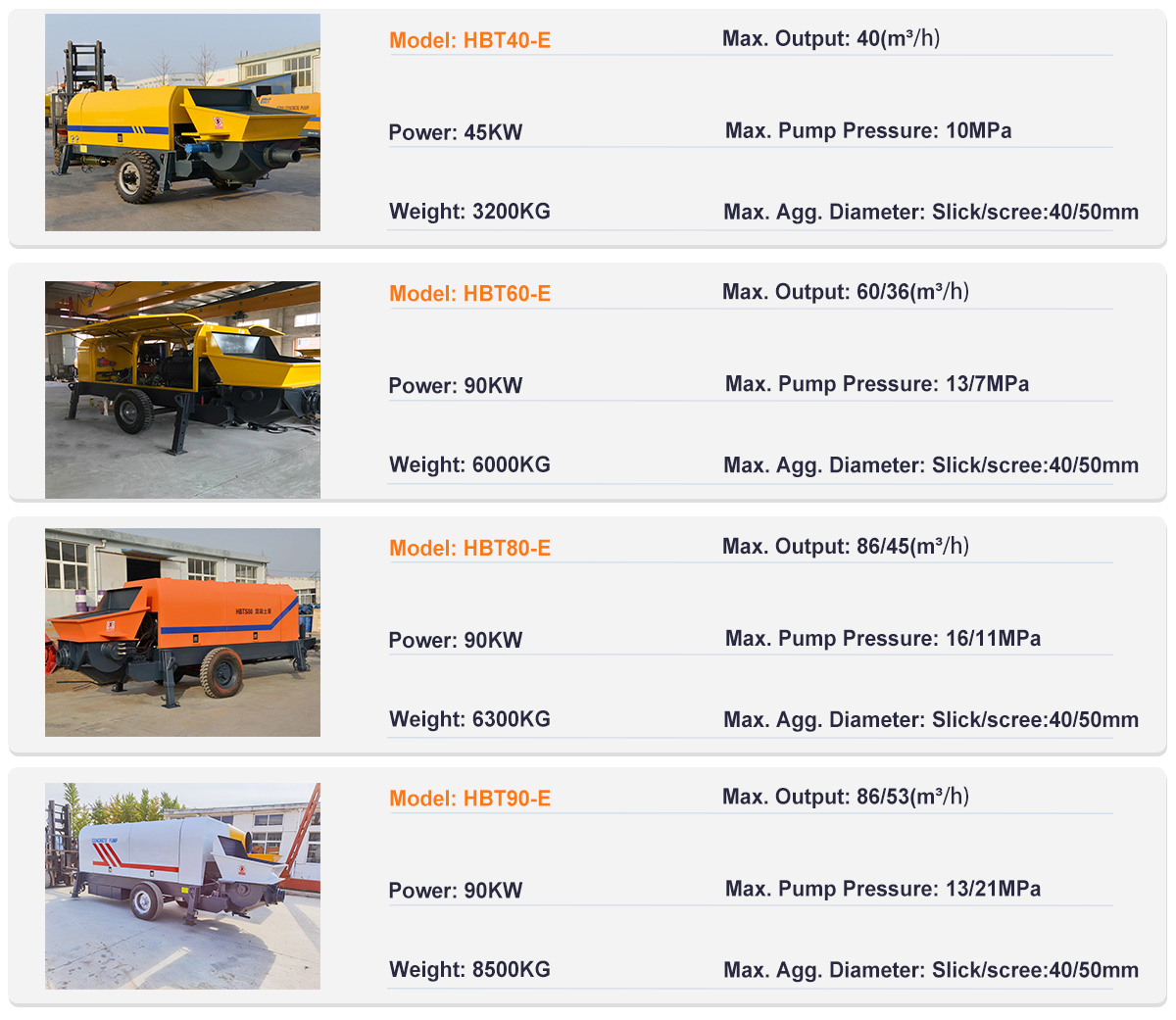

Electric HBT40E Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT40-E | 40(m³/h) | 10MPa | 45KW | 40/50mm | 3200KG |
Electric HBT60E Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT60-E | 60(m³/h) | 13/7MPa | 45KW | 40/50mm | 6000KG |
Electric HBT80E Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT90-E | 80(m³/h) | 16/11MPa | 90KW | 40/50mm | 6300KG |
Electric HBT90E Concrete Trailer Pump
| Model | Max.Output | Max.Pump Pressure | Power | Max. Agg. Diameter: Slick/scree: | Weight |
| HBT90-E | 90(m³/h) | 21/13MPa | 90KW | 40/50mm | 8500KG |
Composition of electric concrete trailer pump
Pump body: It is the core part of the trailer pump, responsible for sucking in and pushing out concrete. It usually adopts advanced S-tube distribution valve, which can automatically compensate for wear gap and has good sealing performance.
Motor: It provides power for the trailer pump. The motor is usually connected to a stable power grid or generator.
Hydraulic system: It includes the main cylinder, distribution cylinder, etc., which generates suction through the hydraulic cylinder and piston system to suck concrete out of the mixer or hopper, and then push it to the desired position through the pipeline.
Delivery pipe: Connect the trailer pump with the construction point to deliver concrete to the designated location.
Control system: It includes electrical components and PLC control system, etc. It has remote control function, which makes operation safer and more convenient.
Lubrication system: Automatic centralized lubrication system to ensure effective lubrication during machine operation.
Chassis system: Multi-traction design, self-recovery ability, flexible and maneuverable
Why Choose SMAT Concrete Pumping Machine:
Advanced Technology :
▶SMAT uses the world-famous brand drive motor, more stable quality, and longer service life.
▶We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time.
▶The reverse state is conducive to troubleshooting pipe blockage and can stop running for a short time to wait for materials. It also helps to prolong the service life of the pumping machine.
▶Advanced S distribution valve can automatically make up for the wear gap and good sealing performance.
▶It has an automatic enhanced lubrication system to ensure effective lubrication during operation.
▶The cooling system adopts a forced air-cooled radiator device to ensure that the working oil temperature is below 70 ℃, which ensures that the hydraulic system of the host is in normal working condition.
▶If your area has enough electricity and stable voltage. We offer both fuel and pure electric models.
For customers:
▶Choose SMAT stable performance and high-quality concrete mixer pump, the failure rate is very low and the return rate is greatly improved. It can mix and deliver ready-mixed concrete quickly, saving time and labor costs.
▶Ensure the proportion of concrete mixture accuracy in every batch, reducing the high cost of trial and error.
▶The convenience of the SMAT concrete mixer pump helps you make quick progress on your project at the site. Save a lot of labor and expense to transport concrete to the site.
▶Wireless remote control operation is more safe and more convenient for operators. With the automated control system as well as intelligent operation, it can save time for training.
▶For SMAT concrete mixer pump, less investment, higher quality concrete, which can help buyers take the investment back within a short time. Both reduce the impact on the environment and save costs.

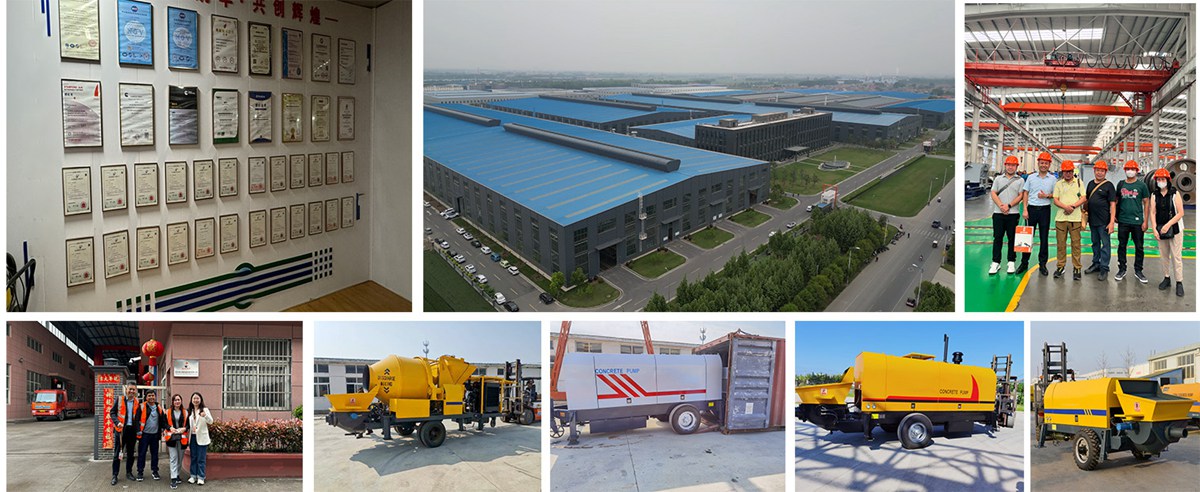

Factory Capability:
SMAT has several production plants in China. The total area is 300,000 square meters with 28 perfect production lines. As a top manufacturer of machinery for the construction industry, SMAT focuses on making innovative technologies, manufacturing better quality products, and providing comprehensive solutions for the projects of our global customer partners. Our products have been exported to more than 80 countries and we have set up service stations in many countries.
SMAT Concrete Trailer Pump Partner Strength:
SMAT Machinery Online Service:
▶Free customized product appearance color and logo. provide ODM support.
▶Adequate stock of original spare parts to ensure the smooth operation of the project.
▶SMAT provides engineers with on-site installation guidance, commissioning, and training services.
▶VIP groups are created for customers. If you have any questions, feel free to give feedback.
▶7*24 hours online free consulting service, including quotation, 2-3 sets of program design, Autocad &3D drawings, and on-site guidance.
▶SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
