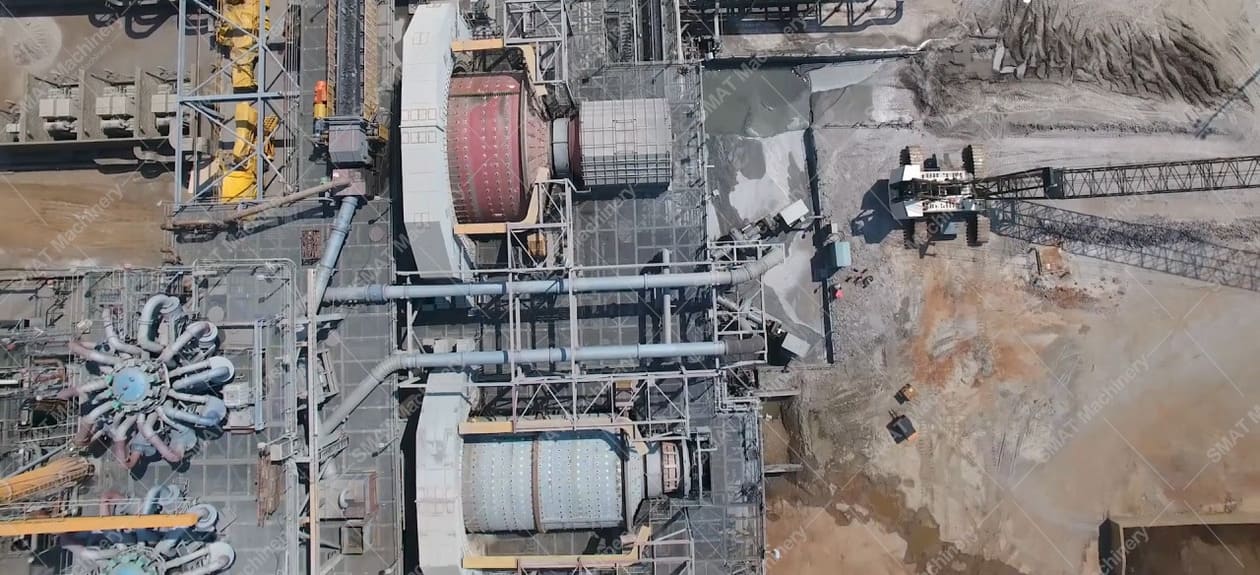

What is an ore processing machine?
An “ore processing machine” isn’t a single piece of equipment. Rather, it refers to the entire machinery used in the mineral processing (also known as ore dressing or beneficiation) process to separate valuable minerals from undesirable gangue, enriching and producing concentrate or intermediate products suitable for subsequent smelting.
An ore processing machine is a “mineral processing system” or “production line,” consisting of multiple specialized pieces of equipment arranged in a sequential process sequence.
The importance of ore processing machines in ore
An ore processing machine is a complete “ore processing plant” or “mineral processing plant” that uses physical, chemical, or biochemical methods within the mining-metallurgical chain to dissociate, separate, enrich, and dehydrate valuable minerals from raw ore.
An ore processing machine encompasses a series of interconnected machines, equipment, and process flows used to process mined raw ore (or coarse ore) to increase the grade (concentration) of valuable minerals or metals and remove unwanted components (gangue, impurities). The result is a concentrate (sometimes also containing middlings or tailings) that meets smelting requirements or is ready for direct sale.
This process takes into account economic efficiency, energy efficiency, and environmental sustainability.
Crushing and Grinding in Ore Processing
The purpose of crushing and grinding is to reduce large ore pieces to the millimeter-micrometer scale, thereby separating the valuable mineral components.
Crushing and Grinding
| Primary Crushing | Jaw Crusher, Gyratory Crusher |
| Secondary Crushing | Cone Crusher, High-Pressure Grinding Roller (HPGR) |
| Grinding | Semi-autogenous Grinding Mill (SAG Mill), Ball Mill, Rod Mill |
Jaw Crusher
Used for coarse crushing (the first stage of crushing), it crushes ore by squeezing the movable jaw against the fixed jaws.
Jaw Crusher handles large lumps and has a simple and reliable structure.
Cone Crusher
Cone crushers are used for secondary and tertiary crushing (the second and third stages of crushing).
They crush ore by squeezing and bending between the rotating and oscillating cones. They are highly efficient and produce a uniform product size.
Impact Crusher
Impact crushers are used for secondary crushing (and can partially replace cone crushers). They use the hammers on the high-speed rotating rotor to impact the ore, causing it to strike the impact plates and crush it.
Impact crusher are suitable for medium-hardness, brittle ores and produce a fine-grained product.
High-Pressure Grinding Roller
A high-pressure grinding roller (HPGR) is a highly efficient fine-crushing device.
It uses two counter-rotating high-pressure rollers to squeeze the ore, creating internal cracks and crushing it, resulting in significant energy savings.
Screening and Classification
The purpose of grading and screening is to classify ore by particle size during or after crushing, control product size, and improve crushing efficiency and subsequent processing. For example, this can remove unqualified particles and return large aggregates for re-crushing.
Core Equipment:
| Vibrating Screen | The most widely used, it uses the excitation force generated by a vibrating motor or exciter to generate high-frequency vibrations on the screen surface, thereby screening the material. Screens are available in single- and multi-deck configurations, depending on the number of screen layers; and in circular and linear vibrating screens, depending on the motion trajectory. |
| Spiral Classifier | This utilizes a combination of settling velocity and mechanical rake motion. The slurry is fed into an inclined semicircular trough at a low speed. Coarse particles settle to the bottom and are continuously raked upward by rotating spiral blades for dewatering. Fine particles remain suspended in the water and are discharged through an overflow weir. |
| Hydrocyclone | Utilizes a centrifugal force field instead of a gravitational field. The slurry enters a cylindrical-conical chamber tangentially under a constant pressure (0.05–0.4 MPa), creating a high-speed rotating flow. |
Ore Grinding
Grinding is the process of further comminuting crushed particles to a size that allows them to dissociate or approach dissociation (usually tens of microns), allowing the separation of useful minerals from gangue minerals. It is one of the most energy-intensive steps in the mineral processing process.
Core Equipment:
| Ball Mill | The most commonly used grinding equipment. Steel balls (or other grinding media, such as steel rods or ceramic balls) are loaded into the grinding cylinder. As the grinding media rotates, the impact and abrasive action of the falling media further pulverizes the ore. These mills are categorized as either grate mills (which produce coarse overflow particles and rapid discharge) or overflow mills (which produce finer overflow particles). |
| Rod Mill | Uses steel rods as the grinding media. Its characteristics are relatively uniform product particle size and minimal over-grinding, making it commonly used for coarse grinding. |
| Semi-autogenous Mill | Widely used in large mines, it uses the ore itself and a small number of large steel balls as the grinding media. This simplifies the process (by eliminating or reducing the crushing stage), but also results in high energy consumption. |
| High-Pressure Grinding Roller | Sometimes used as a coarse grinding device, replacing the first-stage ball mill or operating in conjunction with it to improve efficiency. |

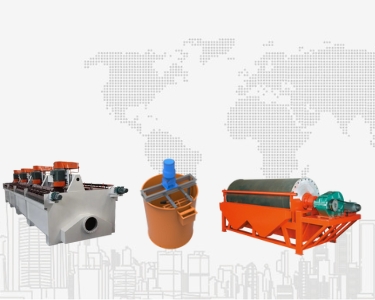

Mineral Beneficiation
Purpose: To separate useful minerals from waste rock based on differences in the physical, chemical, or physicochemical properties of target minerals and gangue minerals, thereby improving the concentrate grade. This is the core of the entire processing process.
Five Methods of Beneficiation
| Gravity separation | Utilizes differences in mineral particle density for separation. |
| Magnetic separation | Utilizes differences in the magnetic properties of minerals for separation. |
| Jig | Utilizes vertical alternating water flow to separate particles of varying densities into separate layers. |
| Flotation | Utilizes differences in the physical and chemical properties of mineral surfaces (primarily hydrophobicity/hydrophilicity) to carry hydrophobic target minerals upwards and separate them through bubbles. |
| Electrostatic separation | Utilizes differences in the electrical properties (conductivity) of minerals for separation (e.g., scheelite-cassiterite separation, seashore placer separation). |
Concentrate Treatment:
Concentrate treatment involves processing the selected concentrate into a final form suitable for sale or transport (primarily dehydration and drying).
Core Equipment:
| Concentrator | Utilizes gravity settling to concentrate concentrate slurry into an underflow concentrate, generating clarified overflow water for recycling. |
| Filter | Utilizes vacuum extraction, pressure extrusion, or centrifugal force to remove most of the moisture from the concentrated concentrate, forming a filter cake. Types include cylindrical vacuum filters, disc vacuum filters, ceramic filters, plate and frame filter presses, and belt filter presses. |
| Dryer | Further removes any remaining moisture from the filter cake, reducing it to a low moisture content (e.g., <10%) suitable for storage and transport. |
The core purpose of an ore processing machine
Separating valuable minerals from gangue: Physically or chemically separating valuable target minerals (such as metallic or industrial minerals) from undesirable rock (gangue).
Improving product grade: Increasing the percentage of valuable elements or minerals in the final concentrate.
Producing products suitable for smelting or market: Processing the concentrate to meet the particle size, moisture content, and other requirements of downstream smelters or direct users.
Recovering valuable components: Maximizing the recovery of target valuable minerals from the ore and minimizing losses.
Waste treatment: Safely disposing of or reusing tailings generated during the processing process.
Ore processing equipment specifications
| Ore Processing Category | Equipment Name | Model Example | Capacity (t/h) | Power (kW) | Applicable Ore Types | Main Features |
|---|---|---|---|---|---|---|
| Crushing Equipment | Jaw Crusher | PE-600×900 | 50-180 | 55-75 | Iron ore, copper ore, gold ore, limestone | Simple structure, large crushing ratio, suitable for primary crushing |
| Cone Crusher | PYB-1200 | 40-120 | 110-132 | Hard ores (granite, basalt) | Good final particle shape, suitable for secondary crushing | |
| Impact Crusher | PF-1210 | 60-100 | 90-110 | Medium-hard ores (limestone, dolomite) | Excellent particle shape, ideal for medium and fine crushing | |
| Hammer Crusher | PC-800×1000 | 30-80 | 55-90 | Brittle ores (coal, gypsum) | One-time forming, compact structure | |
| Grinding Equipment | Ball Mill | Φ2100×3000 | 5-50 | 75-160 | Metal and non-metal ores | High grinding fineness, suitable for wet or dry operation |
| Rod Mill | Φ2400×4500 | 10-80 | 110-280 | Quartz sand, feldspar | Less over-crushing, uniform particle size | |
| Raymond Mill | 4R3216 | 1-5 | 37-75 | Limestone, calcite | Small footprint, efficient fine powder processing | |
| Beneficiation Equipment | Shaking Table | 6-S | 0.5-2.5 | 1.1-2.2 | Gold, tungsten, tin ore | High recovery rate, high concentrate grade |
| Spiral Chute | LL-1200 | 2-4 | No power required | Iron ore, chromite | Simple structure, energy-saving and eco-friendly | |
| Magnetic Separator | CTB1230 | 15-45 | 5.5-11 | Magnetic ores (magnetite, hematite) | High magnetic field strength, precise separation | |
| Flotation Machine | XCF-8 | 4-8 | 11 | Copper ore, lead-zinc ore | Suitable for fine particle mineral separation | |
| Screening & Classification Equipment | Vibrating Screen | 3YK1548 | 30-80 | 15 | All types of ores | High screening efficiency, stable structure |
| Spiral Classifier | FG-12 | 10-65 | 7.5-11 | Metal ores, sand & gravel | Works with grinding mill for particle classification | |
| Concentration & Dewatering Equipment | Thickener | NZS-18 | 28-83 | 3-7.5 | Concentrate slurry, tailings slurry | Improves solid-liquid separation efficiency |
| Filter Press | XMY100/1000 | 5-15 | 5.5-7.5 | Concentrate dewatering | High filtration accuracy, low moisture in filter cake | |

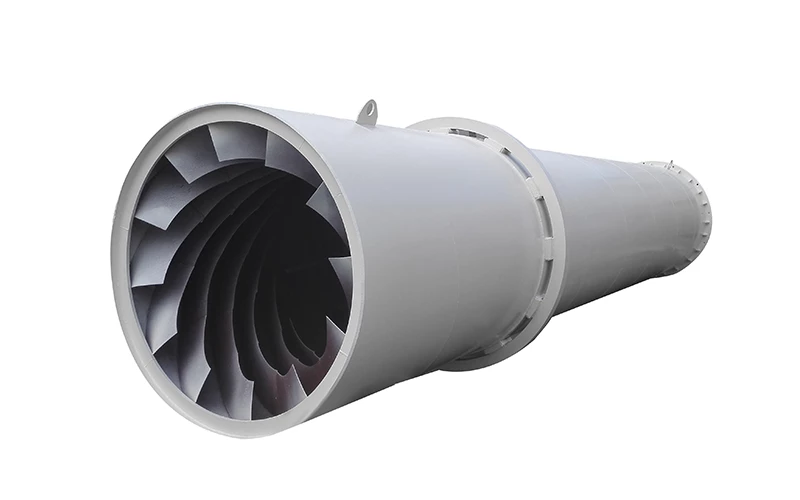

| Rotary Dryer | Φ1.5×12 | 5-20 | 11-37 | Various mineral powders | High thermal efficiency, suitable for continuous operation |
Technical features of ore processing plants
Highly Customizable: Processing plant designs are strictly tailored to specific ore properties (mineral composition, particle size distribution, intergrowth relationships, hardness, density, magnetic properties, floatability, etc.), deposit size, and product requirements. Few two plants are exactly alike.
Complex Process Configuration: Crushing, grinding, and separation processes are often implemented in multiple stages, either in series or in closed circuits, to achieve optimal efficiency.
High Energy Consumption: Crushing and grinding (ball milling and semi-autogenous grinding) in particular typically account for over 50% of a plant’s total energy consumption. Separation processes, such as flotation, also consume significant amounts of energy. Energy conservation and consumption reduction are key challenges.
Automation and Intelligence: Modern mineral processing plants commonly utilize DCS (Distributed Control Systems)/PLC (Programmable Logic Controllers) to monitor and control processes. SMAT’s mineral processing and crushing equipment enables more convenient and efficient mineral processing.
Significant scale effect: Large mines have scale advantages, and their investment and operating costs per unit processing volume are often lower than those of small mines.
Ore processing line application example
Magnetite beneficiation plant:
The process may consist of three-stage, closed-circuit crushing -> one-stage ball mill -> hydrocyclone classification (closed-circuit) -> multi-stage wet magnetic separation -> concentration -> filtration -> drying. Core equipment includes cone crusher, ball mill, hydrocyclone, drum magnetic separator, concentrator, and filter.
Porphyry copper beneficiation and crushing plant
The process may consist of three-stage crushing -> ball mill (semi-autogenous grinding) -> hydrocyclone classification (closed-circuit) -> copper-molybdenum mixed flotation -> coarse concentrate regrinding -> copper-molybdenum separate flotation -> concentrate concentration -> filtration. Core equipment includes gyratory crusher, cone crusher, ball mill/semi-autogenous grinding mill, hydrocyclone, flotation cells (rougher, scavenger, and finer), and filter. Molybdenum concentrate typically requires drying.
Quartz sand beneficiation plants:
The process may involve scrubbing for desliming, classification, magnetic separation for iron removal, flotation for impurity removal, concentration, and drying. Core equipment includes scrubbing machines, classifiers (such as hydraulic classifiers or screens), magnetic separators, flotation machines, and filtration/drying equipment.
