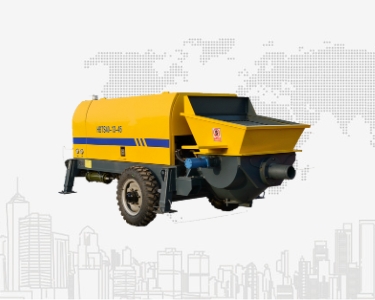

Concrete Trailer Pump
Concrete Trailer Pump
Pump: 20 - 90m3/h
Diesel & Electric
Vertical: 100-300 meters, Horizontal: 100-1200 meters
It is ideal equipment for high raising building construction, water engineering projects, railway construction, sea road project, flood control project,bridges and culverts, hydro-power, mines and other projects.
It greatly improves the construction efficiency, saves labor costs, shortens the construction period, and expands economic benefits.
Diesel type
Electrical type

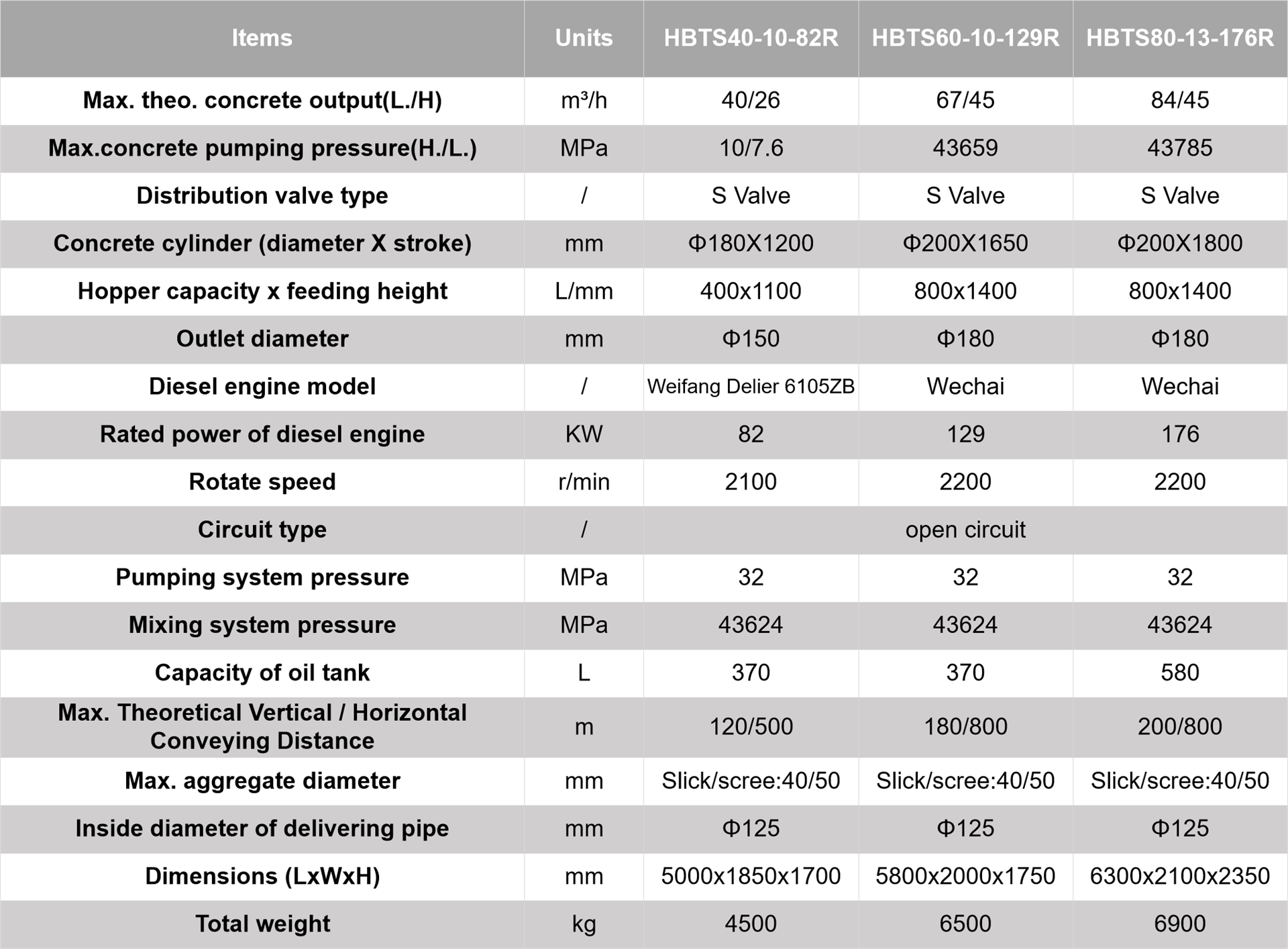

| Items | Units | HBTS40-10-82R | HBTS60-10-129R | HBTS80-13-176R |
|---|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/7.6 | 43659 | 43785 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter X stroke | mm | Φ180X1200 | Φ200X1650 | Φ200X1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 |
| Diesel engine model | Weifang Delier 6105ZB | Wechai | Wechai | |
| Electrical engineering power | KW | 82 | 129 | 176 |
| Rotate speed | r/min | 2100 | 2200 | 2200 |
| Circuit type | open circuit | |||
| Pumping system pressure | MPa | 32 | 32 | 32 |
| Mixing system pressure | MPa | 43624 | 43624 | 43624 |
| Capacity of oil tank | L | 370 | 370 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/800 | 200/800 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
| Dimensions: length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 |
| Total weight | kg | 4500 | 6500 | 6900 |

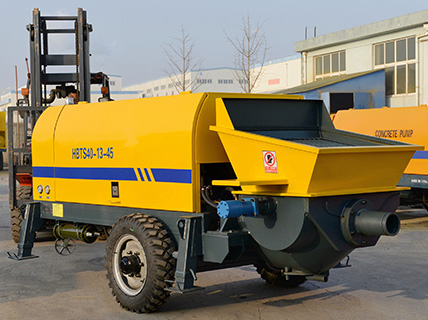

Diesel Type Concrete Trailer Pump

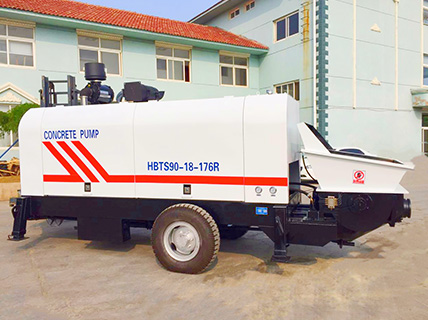

Electric Type Concrete Trailer Pump

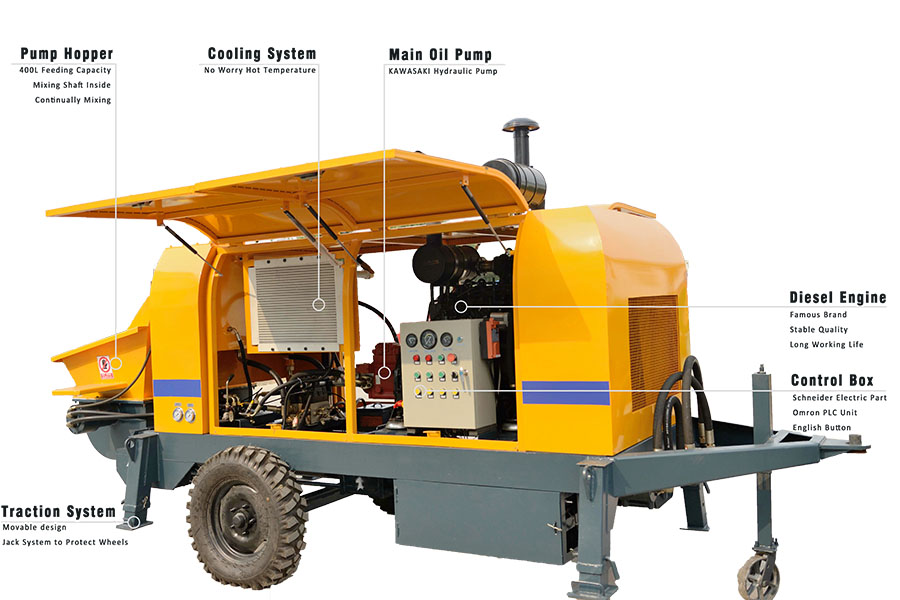

Concrete Trailer Pump Advantages
Engine
Famous brand drive motor
Stable quality
Long usage lift.
Pump hopper
Big feeding capacity
Contain mixing shaft inside hopper, keep mixing concrete again inside pump hopper.
Main oil pump
KAWASAKI oil pump.
Gear pump
Double gear pump, one for cooling, one for drive mixing shaft of pump hopper.
Control box
Schneider electric part.
Omron PLC unit.
Traction system
Equip wheel for movable
Design Jack system at the Traction part, when work, Pack up wheel, let support leg on floor, so that Protect wheel.
Pipe And Connector
100m pipeline and connector are included for free.
Usage site
Work with mixer , mixer truck, concrete batching plant etc.
Q:When should I choose concrete pump ?
① When your projects need vertical concrete supply, such as buildings, house, hotel etc.
② Concrete pump can match with mixer, transit mixer truck , concrete batching plant to pump concrete.
Q:How can I choose the right model concrete pump?
Pls make sure the concrete pump capacity is bigger than your mixing machine’s capacity. since the concrete pump can do no-load operation.
Q:How can I check your machine quality ?
① We can provide video calling for factory and products visiting online.
② Third party products inspection is accept for us anytime.
Q:How can you ensure after sales service during the epidemic?
① We have professional engineers can provide both online and on-site installation and trainning.
② We have local installation team partners can prodive you turn-key installation and trainning.
Q: What value-added services can I get ?
① Customized solutions provided by SMAT engineers make the operation of your workers simple and efficient.
② Free operation guidance on the site of the batching plant to help save production costs and improve concrete quality and profits.
③ Lifetime free technical consultation.
Q:What about your prices?
In China, the production cost difference within 5-10% based on same configurations and similar qualtiy. For SMAT, we will provide the most cost-effective solution according tO customer needs.
