Mobile Crushers
Mobile Crushers Advantages
1-500 tons per hour.
Have solution for hard and soft material.
Few installation and assembly works.
Brief description of mobile crusher
The mobile crusher is a product developed on the basis of the fixed crusher, which solves the problems that the fixed crusher cannot be moved and the foundation construction process is long. From the structure, it can be divided into wheel type mobile crusher, crawler type mobile crusher and simple mobile crusher.
Wheel type mobile crusher
The main structure of the wheel type mobile crusher includes tires, chassis, crushers, control systems, and auxiliary parts. SMAT can configure jaw crusher, impact crusher, cone crusher, vibrating screen, vibrating feeder, belt conveyor, etc. according to users’ specific requirements, thus to meet the requirements of different customers for crusher functions.
This mobile crusher has the following main features: it is easy to move, quick and easy to install, compact in structure and saves space, and has low requirements for the foundation. Wheel type mobile crushers are ideal substitutes for stationary mobile crushers.

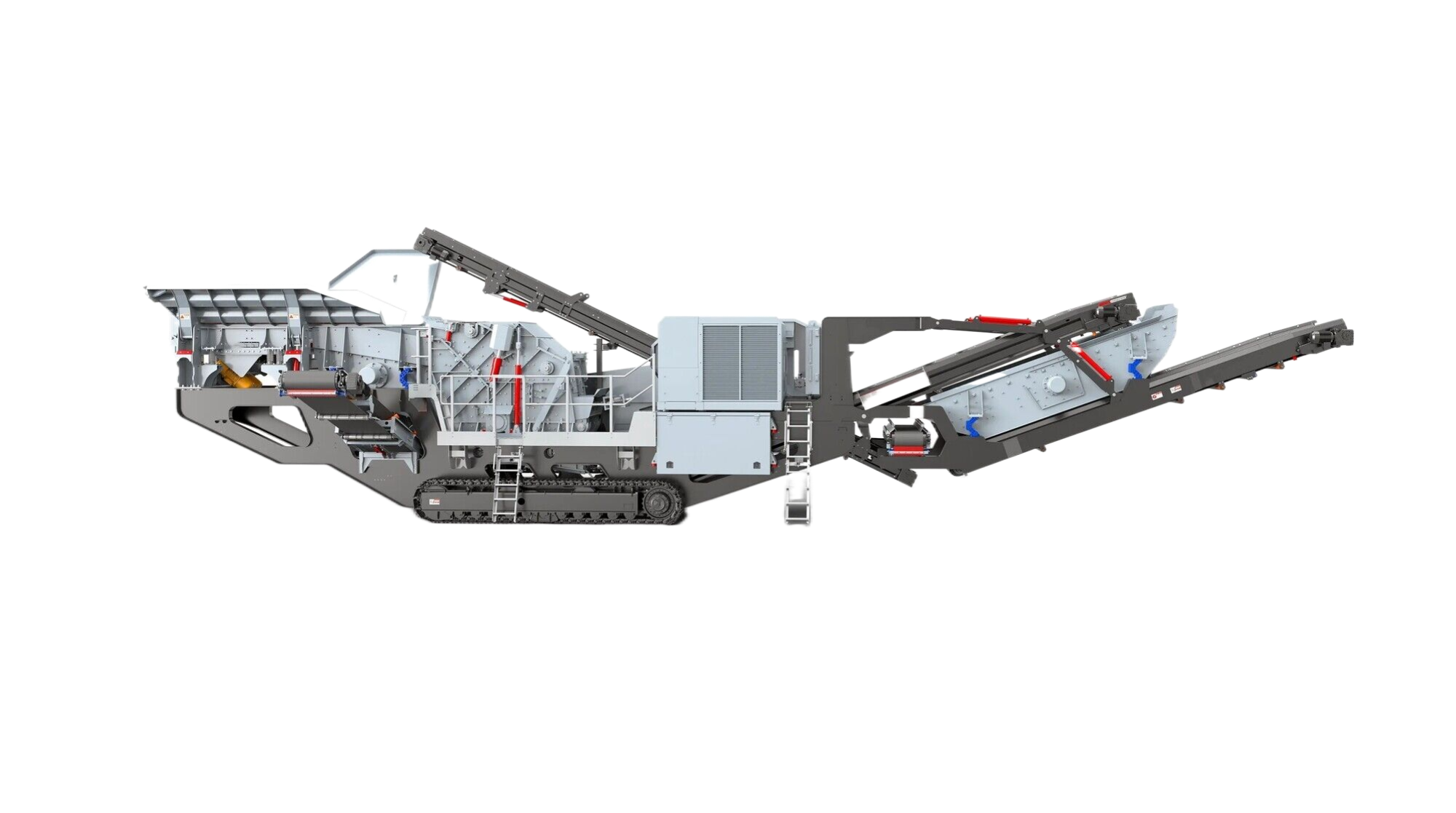

Crawler type mobile crusher
The main structure of crawler mobile crusher includes walking system, power system, chassis, crusher, control system and auxiliary parts. According to the actual needs of users’ projects, the SMAT design team configures jaw crushers, impact crushers, cone crushers, vibrating screens, vibrating feeders, belt conveyors, etc. to meet the requirements of different customers for crusher functions. According to the requirements of the project, the crawler crusher often uses the cooperation of multiple machines to complete the crushing operation.
The main advantage of the crawler crusher is that it can walk independently, and it is very convenient to move without using other power. And it has low requirements on the site, no concrete foundation is required for installation, which is very efficient and convenient.
Simple mobile crusher
The simple mobile crusher is the ideal crushing equipment for small and medium projects. According to the project requirements, our mobile crusher can be equipped with wheel, or without wheel but only equipped with outriggers for easy discharge.
Depending on the specific situation, the crushing part can be equipped with jaw crusher, hammer crusher, PXJ fine crusher, box crusher, etc., in order to meet the requirements of different crushing output and discharge fineness.
In terms of driving mode, since this kind of mobile crusher often has only one crusher, it is often more cost-effective to choose a diesel engine. If multiple pieces of equipment are involved, diesel generators can be chosen.
| Crusher | Wheel type mobile crusher | Crawler type mobile crusher | Simple mobile crusher |
|---|---|---|---|
| Processing capacity | 30-300 tons per hour | 30-300 tons per hour | 1-30 tons per hour |
| Cost | as low as 50,000 USD | as low as 150,000 USD | Thousand usd only |
| Mobility | A trailer to tow always | Walk automatically, but truck required for long distance transportation | Truck required for long distance transportation |
| Installation and commissioning | Under SMAT engineer guidance | Under SMAT engineer guidance | Under SMAT engineer guidance |
| Foundations work | Few | None | None |
| Operation | Semi-Automatically | Automatically | Manually |
| Applicable materials | Various, soft and hard type | Various, soft and hard type | Various, soft and hard type |
| Drive mode | Diesel engine or diesel generator, or electricity | Diesel engine or diesel generator, or electricity | Diesel engine or diesel generator, or electricity |
Specification of Mobile Jaw Crusher
| Model | Feed opening size(mm) | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions(L*W*H) (mm) |
|---|---|---|---|---|---|---|---|
| PE 150*250 | 150*250 | 125 | 10-40 | 1-3 | 268 | 4P (5.5kw) | 760*700*860 |
| PE 200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 4P(7.5kw) | 915*780*990 |
| PE 200*350 | 200*350 | 180 | 18-60 | 3-10 | 276 | 4P(11kw) | 1000*914*1112 |
| PE 250*400 | 250*400 | 210 | 20-70 | 5-21 | 300 | 6P(15kw) | 1100*1032*1285 |
| PE 400*600 | 400*600 | 340 | 40-100 | 16-64 | 270 | 6P(30kw) | 1623*1736*1615 |
| PE 500*750 | 500*750 | 425 | 50-100 | 40-110 | 268 | 6P(55kw) | 1920*1850*1920 |
| PE 600*750 | 600*750 | 500 | 150-200 | 80-240 | 268 | 6P(55kw) | 2020*1850*1920 |
| PE 600*900 | 600*900 | 500 | 65-160 | 50-160 | 254 | 6P(55kw) | 2530*1900*2340 |
| PE 750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 245 | 8P(110kw) | 2680*2380*2785 |
| PE 900*1200 | 900*1200 | 750 | 100-200 | 220-380 | 208 | 8P(110kw) | 3470*2876*3330 |
| PE1200*1500 | 1200*1500 | 1020 | 150-350 | 400-1000 | 180 | 8P(160-245kw) | 4850*3220*3680 |
| PE1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1200 | 180 | 8P(280-380kw) | 5160*3660*4248 |
| PEX 150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 4P(15kw) | 1170*1575*1030 |
| PEX 250*750 | 250*750 | 210 | 25-60 | 13-35 | 320 | 6P(22kw) | 1550*1730*1470 |
| PEX 250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 6P(30kw) | 1580*2006*1390 |
| PEX 250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 6P(37kw) | 1780*2214*1430 |
| PEX 300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 6P(55kw) | 2210*2320*1723 |
Specification of Mobile Impact Crusher
| Model | Specifications (mm) | Feed Opening (mm) | Max.Feeding Size (mm) | Capacity (t/h) | Power (kw) | Dimensions(L×W×H) (mm) |
|---|---|---|---|---|---|---|
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Mobile Crushers Advantages
- It is easy to move, especially suitable for projects that require transition work, and is suitable for engineering requirements such as mines, hydropower stations, and coal mines;
- Light weight and small size;
- Compact structure, suitable for working in narrow places;
- The combination of diesel engine and diesel generator can well adapt to the working environment without electricity, and the diesel generator or diesel engine can be organically combined with the crusher to achieve a more compact overall equipment.
Q:How to choose suitable mobile crusher?
Different type mobile crusher have different advantages, and their own features. We have engineer team specially for project solution designing, they will calculate based on your project requirement, such as the hourly capacity, input and output size, etc. Please contact us for free project designing.
Q:Can the mobile crusher be equipped with diesel engine or generator?
We offer customized equipment. If there is no stable electricity supply, we will suggest you to use diesel engine or diesel generator. And the detailed solution can be designed per your project requirement.
Q:How can we check your machine quality?
We can have video conference with your team, thus we can show you our workshop and machine quality.
On the other hand, we accept third party inspection.
Q:How can you ensure your after sale service during the pandemic?
1.We have professional engineers can provide both online and on-site installation and training.
2.We have local installation team partners can provide you turn-key installation, commissioning and training.
Wheel-type mobile crusher
What is a wheel-mounted mobile crusher? A wheel-mounted mobile crusher uses rubber tires as its travel mechanism and must be towed by a semi-trailer for transportation. It is a “semi-mobile” crushing station. The entire machine integrates feeding, crushing, screening, conveying, and electrical control functions on one or more tire chassis, allowing for quick disassembly and assembly.
Features of a wheel-mounted mobile crusher
• High maneuverability: Short wheelbase and tight turning radius allow for free travel on paved roads and construction access roads; external towing is required for transportation.
• High stability: Hydraulic outriggers are deployed for secure operation, allowing it to carry large-sized jaw crushers, cone crushers, or impact crushers, resulting in high single-unit production capacity.
• Lower cost: Manufacturing costs, purchase prices, and ongoing maintenance are all lower than those of a crawler-mounted crusher.
• Widely applicable: Requires a high-bearing-capacity foundation and is not suitable for muddy, steep slopes, or wetlands.
Typical applications of wheel-type mobile crusher
• Urban construction waste disposal, road reconstruction, and other projects requiring frequent site relocation on relatively flat land.
• Processing of mobile stone materials, such as in highway, railway, and hydropower projects.
• Recycled aggregate production lines and crushing of soft to medium-hard rock in quarries.
What is a crawler mobile crusher?
The crawler mobile crusher uses steel tracks as its travel mechanism and has its own diesel/electric drive system. It can travel autonomously and steer on the spot, without external traction, making it a fully mobile crushing station. It also integrates feeding, crushing, screening, and conveying functions.
Features of the crawler mobile crusher
• High maneuverability: Wireless remote control and self-propelled crawler tracks allow it to climb slopes of 20° to 30°, making it easy to access mountainous areas, wetlands, and open-pit mines.
• High maneuverability: Low ground pressure allows it to traverse mud, snow, and soft ground.
• The overall machine is lighter and smaller, making it more compact, but this limits the crusher specifications, and the unit’s production capacity is slightly lower than that of a similar wheel-type model.
What are the applications of the crawler mobile crusher?
• Open-pit coal mines, metal mines, hydropower station aggregate systems, and other locations with complex terrain and difficult fixed infrastructure.
• Urban demolition sites: Operations can be performed in narrow streets and underground spaces, allowing for on-site processing of reinforced concrete.
• Emergency rescue projects and emergency aggregate supply.
Simple mobile crusher
A simple mobile crusher is a fixed crusher frame with a welded steel trailer chassis or a simple tire chassis. It lacks an independent power system and requires an external tractor for towing. It typically integrates feeding, crushing, and a simple discharge conveyor, without a complete closed-circuit screening system.
Simple mobile crusher features
• Minimalist design: Low price, fast delivery, and simple maintenance.
• Maneuverability: Suitable only for movement on hardened roads or short distances; it cannot climb slopes or operate off-road.
• Single function: Generally only for coarse or secondary crushing, resulting in poor control over the particle shape and gradation of the finished product.
• Requires on-site auxiliary equipment such as a loader, external screen, and generator set.
Typical applications
• Small-scale quarries, rural road construction, and temporary material supply in remote areas.
• Private or government emergency projects with limited budgets and low requirements for finished product quality. • Used as a transitional solution of “fixed line + mobile supplement”, it can be upgraded to tire type or track type later.
