Sand Washing Machine
Sand Washing Machine
1-800 tons per hour.
Clean sand after washing.
Easy operation.
The sand washing machine, also known as the sand classifier, or sand washer. It’s a highly efficient and ideal equipment for sand washing. And very popular in the stone-crushing plants. To archive clean sand, this machine help to remove impurities like dust, wood, plastic, etc. from the sand or gravel.
There are 2 kinds of sand washing machines, the bucket-type, and the spiral-type.

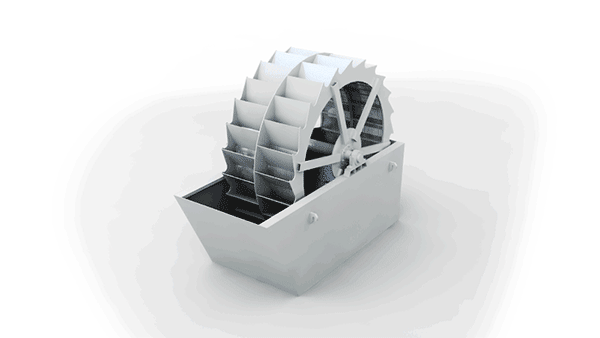

Bucket Type Sand Washing Machine
Bucket type machine is driven by the motor and reducer to drive the impeller to rotate circularly in the water tank, so that the sand, gravel or slag particles in the water tank are stirred and turned over in the water, wash and discharge the water-receiving material after dehydration in the impeller.
Bucket type washing machine has good cleaning performance, reasonable structure, large output, less sand loss during the sand washing process. Especially its transmission parts are isolated from water and sand, so its failure rate is much lower than that of screw type sand washing machine.

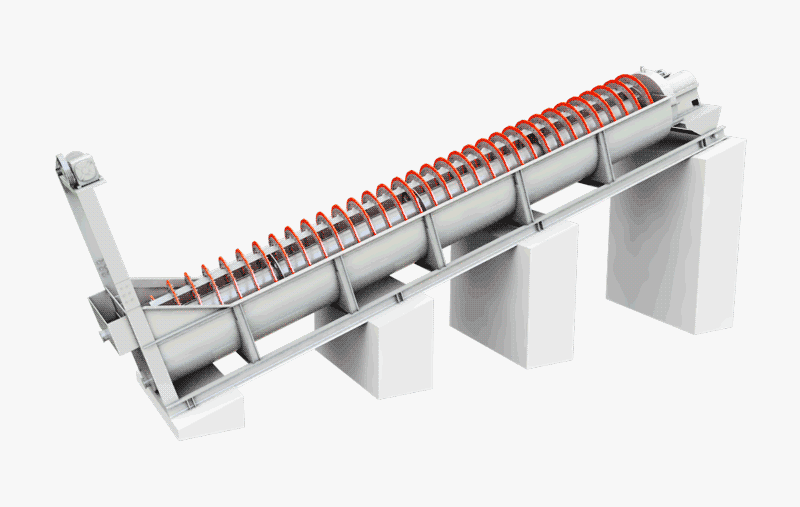

Spiral Type Sand Washing Machine
The spiral type machine is a kind of sand washer. It mainly stirs the sand and gravel through the spiral device in the equipment, so that the soil and water in the sand and gravel are mixed and discharged from the orifice on the equipment, while the sand and gravel are in the under the action of the screw device, it is gradually screened and discharged from the discharge port at the top, thus realizing the cleaning and screening effect of sand and gravel. It is mainly used for washing, grading, impurity removal, and washing of fine-grained and coarse-grained materials in highway, hydropower, construction and other industries. It has the characteristics of low power consumption, high cleaning degree, good sealing structure, fully enclosed transmission device, and adjustable weir plate, which ensures high efficiency, durability, good cleaning and dehydration effects, and stable fine-grained products.
| Model | XS-2208 | XS-2611 | XS-2914 | XS-3020 |
|---|---|---|---|---|
| Wheel bucket diameter (mm) | 2200 | 2600 | 2900 | 3500 |
| Processing capacity (t/h) | 15-40 | 20-65 | 50-100 | 120-200 |
| Rotation speed (r/min) | 1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
| Motor Power (kw) | 4 | 5.5 | 7.5 | 11 |
| Total weight (kg) | 4300 | 5600 | 8100 | 8900 |
| Dimension (mm) | 3150*1910*2280 | 3520*2390*2690 | 3820*2640*3200 | 4420*2930*3800 |
| Model | LX-515 | LX-765 | LX-915 | LX-1115 | 2LX-915 | 2LX-1115 |
|---|---|---|---|---|---|---|
| Screw diameter(mm) | 515 | 765 | 915 | 1115 | 915 | 1115 |
| Trough length(mm) | 7615 | 7620 | 7650 | 9782 | 7650 | 9782 |
| Max. feeding size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Rotation speed(r/min) | 38 | 26 | 21 | 17 | 21 | 17 |
| Water consumption(t/h) | Jun-1960 | Sep-1963 | Oct-1980 | 20-150 | 130-180 | 60-300 |
| Capacity (t/h) | May-2015 | 20-60 | 30-100 | 40-120 | 60-180 | 80-240 |
| Main Motor Power (kw) | 5.5 | 11 | 15 | 18.5 | 2?15 | 2?18.5 |
| Dimensions(L*W*H)(mm) | 8100×2345×1450 | 8545×2650×1870 | 8545×2830×2360 | 11830×3048×2600 | 8545×3870×2360 | 11830×4170×2600 |

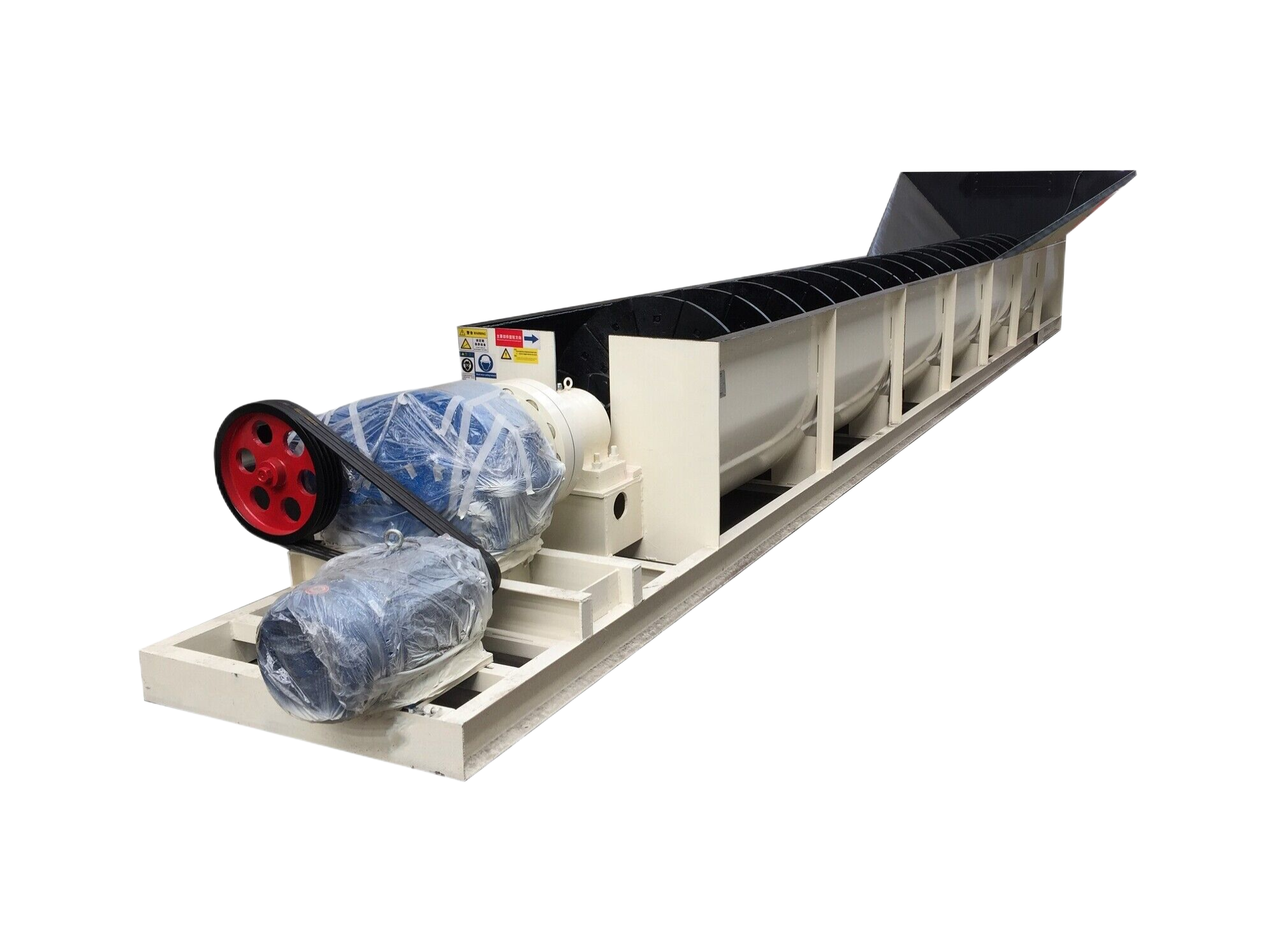

Spiral Type
The advantages of spiral type sand washing machine
- Simple structure and stable operation.
- Bearings are separated from water and materials to avoid damage to the machine caused by pollution and rust.
- Suitable for harsh working environment.
- There is less loss of washed materials, and the washing efficiency is high, which can fully meet the requirements of high-grade materials.
- The service life is relatively long, and there are almost no wearing parts.
Q:How much water does the sand washing machine consume per day?
During the actual operation of the machine, it is often equipped with a sedimentation tank. The sewage from the washing machine is graded and settled in the sedimentation tank, so as to achieve the role of sewage clarification. The water after sedimentation treatment can enter the machine again as circulating water for secondary use. This greatly reduces the water consumption of the washing machine.
Q:How to choose suitable sand washing machine?
We have engineer team specially for project solution designing, they will calculate based on your project requirement, such as the hourly capacity, sand size, etc. Please contact us for free project designing.
Q:How can we check your machine quality?
We can have video conference with your team, thus we can show you our workshop and machine quality.
On the other hand, we accept third party inspection.
Q:How can you ensure your after sale service during the pandemic?
We have professional engineers can provide both online and on-site installation and training.
We have local installation team partners can provide you turn-key installation, commissioning and training.
