Crushing Machine
Crushing materials is an essential process in the production of products in many industries, such as metallurgy, mining, building materials, chemicals, ceramics, and road construction. As a leading global manufacturer of mining crushing equipment, SMAT Machinery has over 25 years of experience in crushing equipment research and development and has successfully delivered over 1,200 crushing lines worldwide.
Crushing Machine
Crushing materials is an essential process in the production of products in many industries, such as metallurgy, mining, building materials, chemicals, ceramics, and road construction. As a leading global manufacturer of mining crushing equipment, SMAT Machinery has over 25 years of experience in crushing equipment research and development and has successfully delivered over 1,200 crushing lines worldwide.
SMAT Crushing Plant Display
What is A Stone Crushing Plant?
A crushing plant, also known as a rock crusher, is a complete, one-stop crushing unit. It processes bulk materials such as ore, construction waste, or natural rock through multiple stages of crushing (coarse, medium, and fine) and screening, ultimately producing sand, gravel, aggregate, or other usable graded products that meet particle size requirements.
A complete crushing plant system typically consists of a feeder, crusher (jaw, cone, impact, or impact), vibrating screen, belt conveyor, magnetic separator/magnetic separator, dust collection and spray suppression, and a central electronic control system. These plants can be deployed in various configurations, including fixed, semi-mobile, wheeled, or crawler-mounted.
In short, a crushing plant is a complete production line that transforms bulk rock into usable gravel/sand.
SMAT Crushing Plant Type
Commonly used crushing machines are classified into the following types based on their structure and operating principles:
| Jaw crusher | Jaw crusher relies on the periodic reciprocating motion of its movable jaws to crush material trapped between them. |
| Hammer crusher | Hammer crushes material by the impact of the high-speed rotating hammers and the high-speed impact of the material against the fixed liner. |
| Cone crusher | Stone cone crushes the material between the two cones by bending and squeezing it due to the eccentric rotation of the inner cone. |
| Roller crusher | Roller crushes material between two parallel rollers rotating in opposite directions. The friction between the rollers pulls the material between them, where it is crushed by the rollers. |
| Impact crusher | This crushes the material by the high-speed impact of the hammers, which causes it to collide with the impact plate at high speed and with each other. |

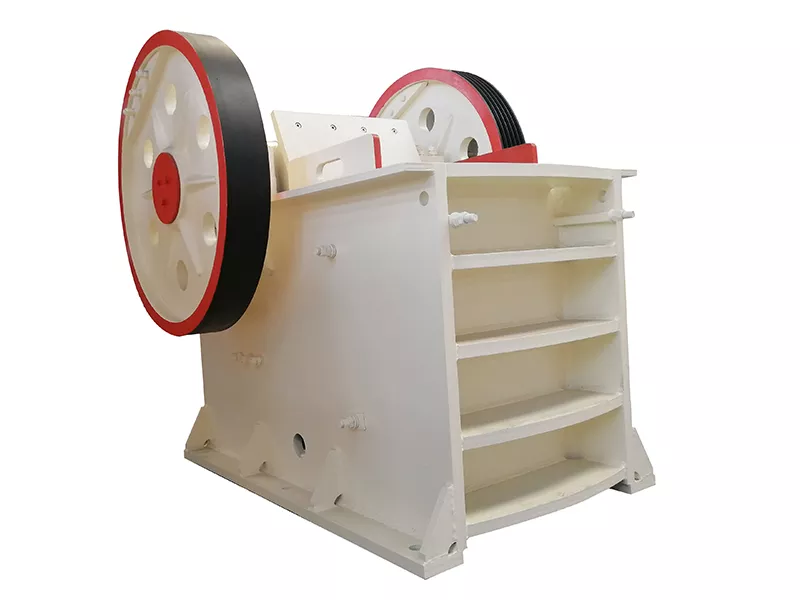

Jaw Crusher For Sale
| Type | Jaw crusher |
|---|---|
| Max. Feeding Size(mm) | 1020 |
| Max Feeder Open(mm) | 1200×1500 |
| Processing capacity(t/h) | 1-800 |
| Adjustment Range(mm) | 15-300 |
| Motor Power (kw) | 5.5-220 |
Hammer Crusher For Sale
| Type | Hammer Crusher |
|---|---|
| Rotate Speed(r/min) | 980-1450 |
| Max. Feeding Size (mm) | ＜400 |
| Capacity (t/h) | 2-50 |
| Discharge size | ＜35 |
| Motor Power (kw) | 11-90 |

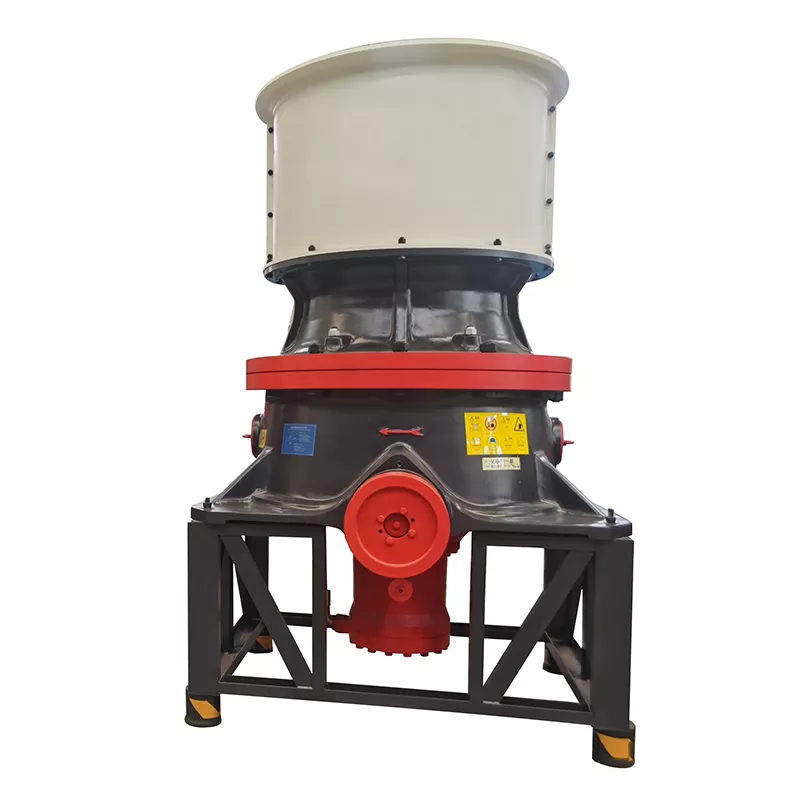

Cone Crusher For Sale
| Type | Cone Crusher |
|---|---|
| Size of Feeder Opening(mm) | 600-2134 |
| Max.Feeding Size(mm) | 391 |
| Adjustment Range(mm) | 6-64 |
| Capacity(t/h) | 9-1941 |
| Installed Power(kw) | 30-400 |
Roller Crusher For Sale
| Type | Roller crusher |
|---|---|
| RRoller Diameter(mm) | φ400-φ2000 |
| Roller Width(mm) | 400-1800 |
| Feed Size(mm) | ≤120 |
| Discharge Opening(mm) | 0-20 |
| Processing Capacity(t/h) | 2-390 |
Impact Crusher For Sale
| Type | Impact crusher |
|---|---|
| Max. Feeding Size(mm) | 300-700 |
| Capacity (t/h) | 30-800 |
| Max Feeder Opening(mm) | 1260×2040 |
| Max. Feeding Size(mm) | 700 |
| Motor Power (kw) | 37-710 |
Mobile Crushing Plant
What is a mobile crushing plant? Mobile crushing plant is a kind of mobile crushing and screening equipment that integrates feeding, crushing, screening, conveying and electrical control. The crusher, feeder, vibrating screen, conveyor belt and other equipment of mobile crushing plant are integrated on one or more movable chassis to form a complete crushing and screening system. It is widely used in mining, construction, highway, railway, water conservancy, construction waste recycling and other industries, especially suitable for engineering projects that require frequent transfer or unfixed working locations.
Mobile crushing and screening station It can be flexibly moved according to the changes of the construction site to realize on-site crushing and screening of materials, avoiding the complex infrastructure and material transportation costs required by traditional fixed crushing stations
Mobile Crushing Plant Specification
| Maximum Feeding Size: | Hourly Capacity | Output Size | Power Supply |
| Customized | 30-500TPH | Customized | Diesel Engine |
Mobile Crushing Plant Movement Mode
- Mobile crushing plants can be divided into the following two categories according to their movement mode:
Tire-type Crushing Plant: suitable for flat terrain, fast transfer, low cost - Crawler-type Crushing Plant: suitable for complex terrain, strong off-road capability, high degree of automation
Performance advantages of Mobile Crushing Plant
Strong mobility: can quickly transfer to various working environments;
Integrated design: high equipment integration, saving installation and commissioning time;
Reduced transportation costs: can work directly at the raw material site, reducing material transportation;
Flexible combination: different equipment can be configured according to process requirements to meet diverse needs;
Environmental protection and energy saving: equipped with dust removal and noise reduction system, in line with environmental protection requirements;
Intelligent control: some equipment supports remote control and automatic operation
Stationary Crushing plant
What is a stationary crushing plant? Stationary crushing plant is a permanent or semi-permanent equipment system used for crushing and screening materials such as ore and construction waste. It is usually installed on a concrete or steel structure foundation and has no mobility or is difficult to migrate.
Fixed crushing station, also known as fixed crushing and screening station, refers to a complete set of equipment that fixes crushers, feeders, vibrating screens, conveyor belts and other equipment on a concrete foundation or steel structure platform for continuous crushing and screening of ore, rock, construction waste and other materials. Stationary crushing plant has no mobility or is difficult to migrate, and is suitable for long-term, large-scale crushing operations.
According to the use cycle and migration capacity, fixed crushing station can be divided into:
- Fully fixed crushing station: Fully stationary crushing plant will not be migrated during the entire service life of the mine, with a long construction period and large investment;
- Semi-fixed crushing station: Semi stationary crushing plantcan be dismantled and migrated after several years, and the migration period is generally not more than 10 years
Stationary Crushing Plant Specification
| Maximum Feeding Size: | Hourly Capacity | Output Size | Power Supply |
| Customized | 30-500TPH | Customized | Diesel Engine |
Stationary crushing plant performance characteristics
Advantages:
Large processing capacity: suitable for large-scale, continuous production;
Stable operation: solid fixed foundation structure, low vibration, long equipment life;
Flexible configuration: can be combined into “crushing first, then screening” or “screening first, then crushing” process according to process requirements;
Strong adaptability: can handle materials of various hardness and particle sizes.
Disadvantages:
Long construction period: civil construction is required, and the installation and commissioning period is long;
Difficult migration: once built, the migration cost is high and it needs to be disassembled and reinstalled;
High transportation cost: materials need to be transported from the quarry to the crushing station, and the transportation distance is long
SMAT Crushing Plant Introduction:
As the infrastructure construction in the world develops faster and faster. The demand for high-quality sand and gravel aggregates continues to grow. Investing in a good crushing production line is a good choice for you. SMAT crushing plants can crush various raw materials, such as cobblestone, limestone, granite, basalt, marble, quartzite, iron ore, etc. Choose SMAT and we will provide you with a one-to-one annual fee solution based on your needs.
SMAT Online Service:
▶Free customized product appearance color and logo. provide ODM support.
▶Adequate stock of original spare parts to ensure the smooth operation of the project.
▶SMAT provides engineers with on-site installation guidance, commissioning, and training services.
▶VIP groups are created for customers. If you have any questions, feel free to give feedback.
▶7*24 hours online free consulting service, including quotation, 2-3 sets of program design, Autocad &3D drawings, and on-site guidance.
▶SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
