Vibrating Screen

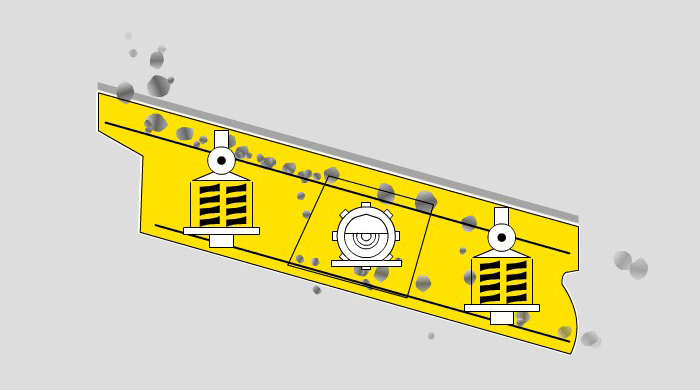

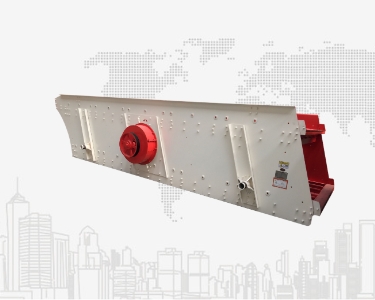

The ZK series linear vibrating screen is driven by dual motors. When the two motors rotate synchronously and in opposite directions, the exciting forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axis and are superimposed as a resultant force in the direction perpendicular to the motor axis, so the motion trajectory of the screen is a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the combined force of the exciting force and the self-vibration force of the material.
The material is thrown up on the screen surface and jumps forward to make a linear motion, thereby achieving the purpose of screening and grading the material.
The ZK series linear vibrating screen is driven by dual motors. When the two motors rotate synchronously and in opposite directions, the exciting forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axis and are superimposed as a resultant force in the direction perpendicular to the motor axis, so the motion trajectory of the screen is a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the combined force of the exciting force and the self-vibration force of the material.
The material is thrown up on the screen surface and jumps forward to make a linear motion, thereby achieving the purpose of screening and grading the material.
What is a vibrating screen?
A vibrating screen is a general screening machine that uses vibration force to make granular materials throw or slide on the screen surface, and generates directional vibration through a motor or exciter, so that the material layer on the screen surface is loose and layered, and particles smaller than the size of the screen hole pass through the screen to become “screen unders”, thereby achieving particle size classification, impurity removal, dehydration or desludging.
The core function of the vibrating screen machine is to separate the mixed material according to the particle size, or remove foreign matter, dust and moisture from it. It is widely used in mining, building materials, chemicals, metallurgy, food, environmental protection and other industries.
Particles larger than the size of the screen hole remain on the screen surface as “screen overs”, completing the particle size classification.
YK series vibrating screen specification
| Model | Sieve layer | Sieve area (㎡) | Mesh size (mm) | Max. feeding size (mm) | Processing capacity (m³/h) | Motor power (kw) | Sieve specification (mm) | Total weight (kg) | Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 5.5 | 1200×2500 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 5.5 | 1200×2500 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 7.5 | 1200×3000 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 7.5 | 1200×3700 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 7.5 | 1200×3700 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 400 | 16-90 | 7.5 | 1200×3700 | 5200 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 11 | 1500×3500 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 11 | 1500×3500 | 6700 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 15 | 1500×4500 | 6330 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 15 | 1500×4500 | 6800 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 18.5 | 1500×4500 | 7800 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 15 | 1500×4800 | 6980 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 15 | 1500×4800 | 7700 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 18.5 | 1500×4800 | 8700 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 15 | 1800×4800 | 9080 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 18.5 | 1800×4800 | 9600 | 5660×2550×1780 |
| 4YK1848 | 4 | 34.56 | 5-80 | 400 | 32-285 | 22 | 1800×4800 | 11100 | 6290×2550×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 18.5 | 1800×5400 | 10150 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 22 | 1800×5400 | 10840 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 30 | 1800×5400 | 12840 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 30 | 2100×2600 | 11780 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 30 | 2100×2600 | 12800 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 37 | 2100×2600 | 14800 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 37 | 2400×6000 | 15600 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 37 | 2400×6000 | 17600 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 45 | 2400×6000 | 19600 | 7600×3140×2380 |
| 2YK2870 | 2 | 39.2 | 5-100 | 400 | 120-680 | 22×2 | 2800×7000 | 21200 | 7600×4320×1620 |
| 3YK2870 | 3 | 58.8 | 5-100 | 400 | 180-720 | 22×2 | 2800×7000 | ||
| 2YK3072 | 2 | 43.2 | 5-100 | 400 | 200-700 | 22×2 | 3000×7200 | 23600 | 7800×4520×1750 |
| 3YK3072 | 3 | 64.8 | 5-100 | 400 | 230-800 | 22×2 | 3000×7200 | 25500 | 8000×4520×2300 |

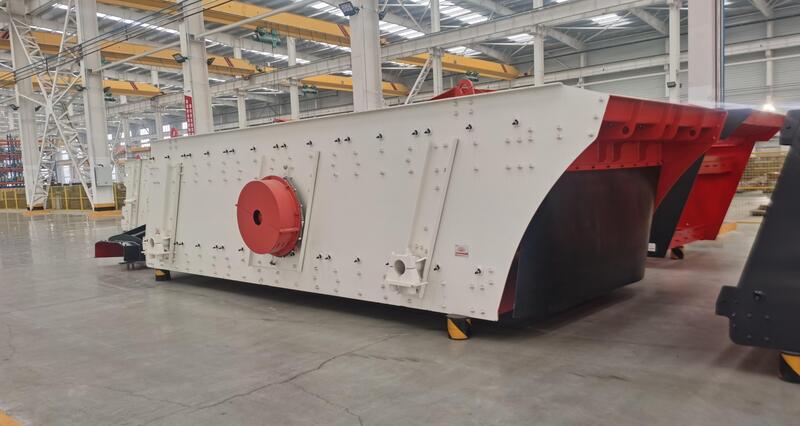

SMAT YK type vibrating screen
The YK type vibrating screen is designed with reference to the structure of the USK screen machine of the former West German KHD company and absorbs the advanced technology of screen machines in the United States and Japan. The YK type vibrating screen is widely used in coal preparation, ore dressing, building materials, hydropower, light industry, construction and other departments for dry material classification. It can also be used to replace the old single-axis screen and self-centering vibrating screen of the same specification in the old factory. The screen machine has advanced technical parameters, high vibration intensity, large production capacity and high screening efficiency. The motor directly drives the vibrator with an adjustable amplitude eccentric block structure, which has a simple structure, convenient maintenance and long service life.
FT series heavy vibrating screen
| Model | Sieve layer | Sieve obliquity(°) | Motor power(kw) | Vibrating frequency(r/min) | Max.feeding size(mm) | Production(t/h) | Dimensions(L×W×H) (mm ) |
| 2ST1855 | 2 | 18 | 18.5 | 780-900 | 200 | 75-600 | 5680×2460×145 |
| 3ST1855 | 3 | 18 | 22 | 780-900 | 200 | 75-600 | 5800×2460×1850 |
| 2ST2165 | 2 | 18 | 30 | 780-900 | 200 | 85-700 | 7160×2990×1690 |
| 3ST2165 | 3 | 18 | 30 | 780-900 | 200 | 85-700 | 7380×2990×2365 |
| 2ST2465 | 2 | 18 | 37 | 780-900 | 200 | 100-800 | 7160×3290×1690 |
| 3ST2465 | 3 | 18 | 37 | 780-900 | 200 | 100-800 | 7380×3290×2365 |
| 2ST2765 | 2 | 18 | 37 | 780-900 | 200 | 120-900 | 7180×3570×1805 |
| 3ST2765 | 3 | 18 | 45 | 780-900 | 200 | 120-900 | 7310×3570×2485 |
| 2ST3065 | 2 | 18 | 37 | 780-900 | 200 | 200-1200 | 7180×3870×1805 |
| 3ST3065 | 3 | 18 | 45 | 780-900 | 200 | 200-1200 | 7310×3870×2485 |
| 2ST3075 | 2 | 18 | 2×22 | 780-900 | 400 | 200-1300 | 8700×4055×1980 |
| 3ST3075 | 3 | 18 | 2×37 | 780-900 | 400 | 200-1300 | 8940×4120×2720 |
What is circular vibrating screen?
Circular vibrating screen is a multi-layer, high-efficiency vibrating screen that can screen materials into multiple grades according to particle size. It is widely used in product screening and grading in mining crushing, construction, transportation, energy, chemical and other industries.
The machine uses a motor to drive the vibrator through a V-belt, so that the screen body vibrates periodically along the direction of the exciting force, and the material moves in a circle on the screen surface, thereby achieving the purpose of screening. The machine uses a motor to drive the vibrator through a V-belt, so that the screen body vibrates periodically along the direction of the exciting force, and the material moves in a circle on the screen surface, thereby achieving the purpose of screening.
Working principle of circular vibrating screen
The circular vibrating screen machine drives the vibrator through a V-belt, so that the screen machine moves periodically along the direction of the exciting force, and the material moves in a circle on the screen surface, thereby achieving the purpose of screening.
The large stones are evenly fed into the jaw crusher by the vibrating feeder through the silo for crushing. The coarsely crushed stones are sent to the impact crusher by the belt conveyor for further crushing. The finely crushed stones are sent to the vibrating screen by the belt conveyor for screening.
Several different specifications of stones are screened out. The stones that meet the particle size requirements are sent to the finished product pile by the finished product belt conveyor. The stones that do not meet the particle size requirements are returned by the belt conveyor to the impact crusher for re-crushing, forming a closed-loop multiple cycle. The finished product particle size can be combined and graded according to the needs of the user. In order to protect the environment, auxiliary dust removal equipment can be configured.

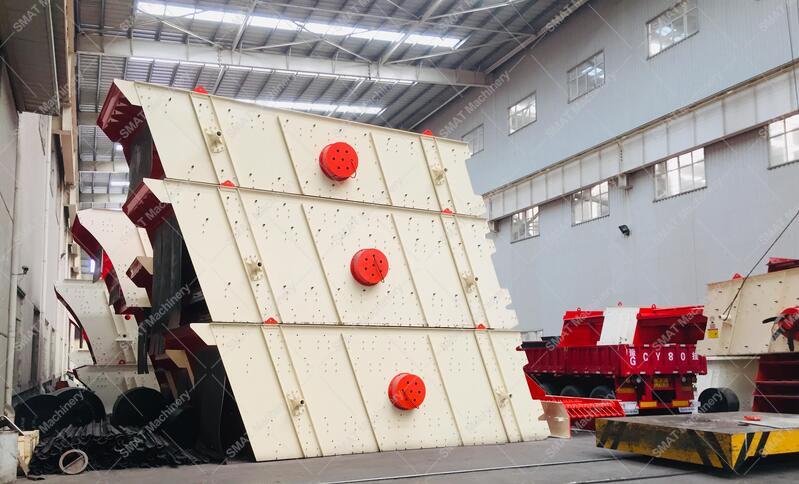

What are the characteristics of circular vibrating screen?
Circular track vibrating screen can be used for various screening operations. Due to the circular vibration of the screen surface, the material on the screen surface is constantly turned over and loosened, so the circular vibrating screen has the following characteristics:
1. The fine particle size has the opportunity to move to the lower part of the material layer and be discharged through the screen hole.
2. The material stuck in the screen hole can jump out to prevent the screen hole from being blocked.
3. High screening efficiency.
4. According to the particle size of the material, the inclination of the screen surface can be changed, thereby changing the movement speed of the material along the screen surface and increasing the processing capacity of the screen machine. If there is no special requirement, the factory supplies it at an inclination of 20°.
5. For difficult-to-screen materials, the main shaft can be turned over, so that the vibration direction is opposite to the material movement direction, and the material movement speed along the screen surface is reduced (when the screen surface inclination angle is the same as the main shaft speed) to improve the screening efficiency.
What are vibrating screens used for?
A vibrating screen is a general-purpose device that uses mechanical vibration to classify, screen, remove impurities, dehydrate, or remove media from materials. It is widely used in industries such as mining, coal, building materials, chemicals, food, pharmaceuticals, and recycling.
| Function Type | Specific Applications | Typical Applications |
| Grading Screening | Classifies materials into different grades based on particle size. | Ore, sand, coal, fertilizer, sugar, salt, etc. |
| Impurity Screening | Removes foreign matter, impurities, and oversized particles from materials. | Food processing, pharmaceutical raw materials, building aggregates |
| Dehydration | Removes moisture from wet materials to increase dryness. | Coal washeries, manufactured sand, and tailings processing |
| Desludging and Demediation | Removes coal slime, mineral slime, or magnetic media. | Post-dense medium separation treatment in coal preparation plants |
| Fine Screening | High-precision classification of fine or micronized powders. | Pharmaceuticals, cosmetics, metal powders, and chemical pigments |
