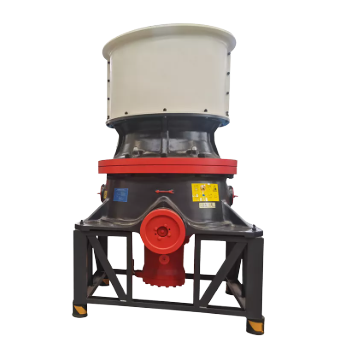

Cone Crusher
Cone Crusher
10-500 tons per hour.
Suitable for hard material, Basalt, Granite, Andesite, Pebble, etc.
Easy discharge size adjustment
Self protection, no worry iron.
Cone crusher is one of the most popular aggregate production equipment, and it is an important equipment in medium and fine crushing process.
Cone crusher includes: spring cone crusher, symons cone crusher (component cone crusher), single-cylinder hydraulic cone crusher, multi-cylinder hydraulic cone crusher.
Working principle of cone crusher
When the cone crusher is running, the motor rotates around the main shaft fixed on the frame through the pulley, the transmission shaft and the conical part under the force of the eccentric sleeve, and the rolling mortar wall is fixed on the adjusting sleeve. As the conical part rotates, the mantle sometimes approaches and sometimes leaves the concave. After the material enters the crushing cavity from the upper feeding port, it will be crushed by the mutual impact force and extrusion force between the mantle and the concave. The material that finally meets the particle size is discharged from the discharge port.
Particle size table of cone crusher
How to adjust cone crusher’s discharge size ?
The spring and Symons cone crusher discharge opening is adjusted by rotating the adjusting ring, and the threaded lifting adjusting ring connected with the support ring drives the concave installed inside the adjusting ring to move up and down to adjust the discharge port.
For Multi-cylinder hydraulic cone crusher, The adjusting cap is adjusted by the hydraulic pusher or the hydraulic motor, thereby driving the adjusting ring to rotate in the support sleeve (the fixed concave moves up and down) to achieve the adjustment effect. The advantage of this adjustment method is that the discharge port is easy to lock.
For single cylinder hydraulic cone crusher, during normal operation, the oil pump is used to inject or discharge oil into the main shaft cylinder, so that the main shaft moves up or down (the main shaft floats up and down), and the size of the discharge port is adjusted.

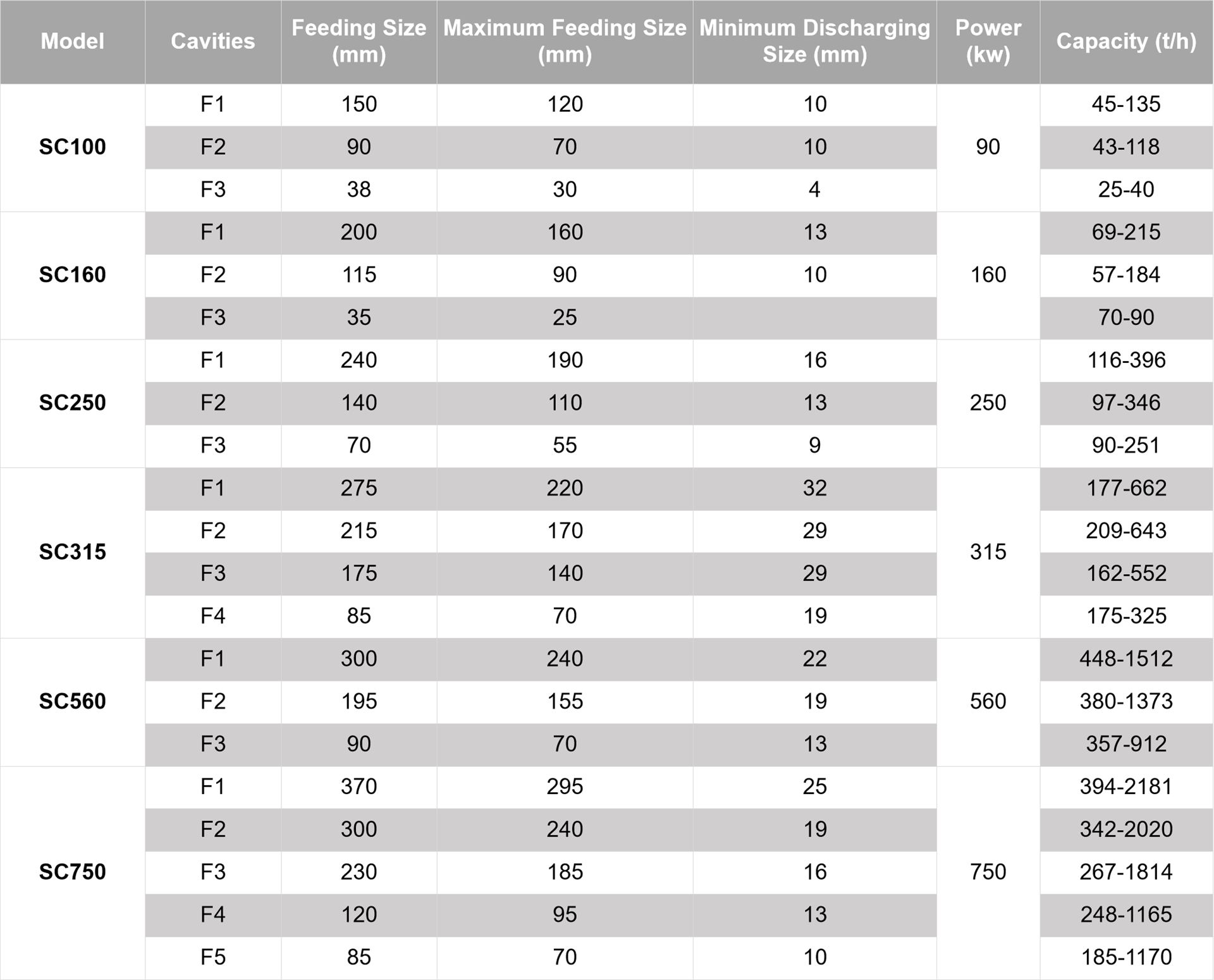

| Model | Diameter of large end of crushing cone (mm) | Max.feeding size(mm) | Width of discharge opening(mm) | Processing capacity (t/h) | Motor power (kw) | Total weight (t) | Dimension(mm) L*W*H（mm） |
|---|---|---|---|---|---|---|---|
| PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 KW | 5 | 2234×1370×1675 |
| PYD600 | 600 | 35 | 3-13 | 12-23 | 8P 30 KW | 5.5 | 2234×1370×1675 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 KW | 11.2 | 2692×1640×2350 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 8P 55 KW | 11.2 | 2692×1640×2350 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 8P 55 KW | 11.3 | 2692×1640×2350 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 KW | 24.7 | 2790×1878×2844 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 8P 110 KW | 25 | 2790×1878×2844 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 8P110 KW | 25.3 | 2790×1878×2844 |
| PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 KW | 50.3 | 2790×1878×2844 |
| PYZ1750 | 1750 | 185 | 10-30 | 80-210 | 8P 160 KW | 50.3 | 3910×2894×3809 |
| PYD1750 | 1750 | 85 | 5-13 | 60-180 | 8P 160 KW | 50.2 | 3910×2894×3809 |
| PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 KW | 80 | 3910×2894×3809 |
| PYZ2200 | 2200 | 230 | 10-30 | 130-410 | 8P 280-260 KW | 80 | 4622×3302×4470 |
| PYD2200 | 2200 | 100 | 5-15 | 80-200 | 8P 280-260 KW | 81.4 | 4622×3302×4470 |
| Type | Model | Diameter of large end of crushing cone(mm) | Adjusting Range of Discharge Opening(mm) | Feed opening size of the open edge when recommending the opening(mm) | Max.feeding size(mm) | Processing capacity(t/h) | Main motor power(kw) | Machine weight(kg) |
|---|---|---|---|---|---|---|---|---|
| PSG 900 | 910 | 914 (3′) | 9-22 | 102 | 85 | 45-91 | 75 | 9980 |
| PSG 900 | 917 | 914 (3′) | 13-38 | 175 | 150 | 59-163 | 75 | 9980 |
| PSG 900 | 904 | 914 (3′) | 3-13 | 41 | 35 | 27-90 | 75 | 9980 |
| PSG 900 | 906 | 914 (3′) | 3-16 | 76 | 65 | 27-100 | 75 | 9980 |
| PSG 1300 | 1313 | 1295 (4¼′) | 13-31 | 137 | 115 | 109-181 | 160 | 22460 |
| PSG 1300 | 1321 | 1295 (4¼′) | 16-38 | 210 | 178 | 132-253 | 160 | 22460 |
| PSG 1300 | 1324 | 1295 (4¼′) | 19-51 | 241 | 205 | 172-349 | 160 | 22460 |
| PSG 1300 | 1306 | 1295 (4¼′) | 3-16 | 64 | 54 | 36-163 | 160 | 22460 |
| PSG 1300 | 1308 | 1295 (4¼′) | 6-16 | 89 | 76 | 82-163 | 160 | 22460 |
| PSG 1300 | 1310 | 1295 (4¼′) | 8-25 | 105 | 89 | 109-227 | 160 | 22460 |
| PSG 1600 | 1620 | 1676 (5½′) | 16-38 | 209 | 178 | 181-327 | 250 | 43270 |
| PSG 1600 | 1624 | 1676 (5½′) | 22-51 | 241 | 205 | 258-417 | 250 | 43270 |
| PSG 1600 | 1626 | 1676 (5½′) | 25-64 | 269 | 228 | 299-635 | 250 | 43270 |
| PSG 1600 | 1607 | 1676 (5½′) | 5-13 | 70 | 60 | 90-209 | 250 | 43270 |
| PSG 1600 | 1608 | 1676 (5½′) | 6-19 | 89 | 76 | 136-281 | 250 | 43270 |
| PSG 1600 | 1613 | 1676 (5½′) | 10-25 | 133 | 113 | 190-336 | 250 | 43270 |
| PSG 2100 | 2127 | 2134 (7′) | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 |
| PSG 2100 | 2133 | 2134 (7′) | 25-51 | 334 | 284 | 862-1424 | 400 | 86730 |
| PSG 2100 | 2136 | 2134 (7′) | 31-64 | 369 | 314 | 1125-1814 | 400 | 86730 |
| PSG 2100 | 2110 | 2134 (7′) | 5-16 | 105 | 89 | 218-463 | 400 | 86730 |
| PSG 2100 | 2113 | 2134 (7′) | 10-19 | 133 | 113 | 404-580 | 400 | 86730 |
| PSG 2100 | 2117 | 2134 (7′) | 13-25 | 178 | 151 | 517-680 | 400 | 86730 |
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power （kw） | Capacity（t/h） |
|---|---|---|---|---|---|---|
| SC100S | C1 | 250 | 200 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 267-605 |
| C2 | 400 | 320 | 29 | 225-515 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 | ||
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 38 | 30 | 4 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 35 | 25 | 70-90 | |||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
| Model | Cavity | Diameter of large end of crushing cone(mm) | Width of Feeding Opening | Max.feeding size(mm) | Adjusting Range of Discharge Opening(mm) | Processing capacity(t/h) | Main motor power(kw) | Machine weight(t) |
|---|---|---|---|---|---|---|---|---|
| STHP 200 | C1 | 900 | 210 | 178 | 22-38 | 160-250 | 4P 160kw | 10.1 |
| STHP 200 | C2 | 900 | 155 | 132 | 18-38 | 145-250 | 4P 160kw | 10.1 |
| STHP 200 | C3 | 900 | 130 | 110 | 14-38 | 120-250 | 4P 160kw | 10.1 |
| STHP 200 | F1 | 900 | 118 | 100 | 12-25 | 108-210 | 4P 160kw | 10.1 |
| STHP 200 | F2 | 900 | 90 | 76 | 10-25 | 81-210 | 4P 160kw | 10.1 |
| STHP 200 | F3 | 900 | 70 | 60 | 8-25 | 72-210 | 4P 160kw | 10.1 |
| STHP 300 | C1 | 1100 | 235 | 200 | 26-45 | 230-445 | 4P 220kw | 17.8 |
| STHP 300 | C2 | 1100 | 211 | 180 | 20-45 | 200-445 | 4P 220kw | 17.8 |
| STHP 300 | C3 | 1100 | 135 | 115 | 16-45 | 180-445 | 4P 220kw | 17.8 |
| STHP 300 | F1 | 1100 | 124 | 105 | 14-25 | 160-220 | 4P 220kw | 17.8 |
| STHP 300 | F2 | 1100 | 96 | 82 | 12-25 | 140-220 | 4P 220kw | 17.8 |
| STHP 300 | F3 | 1100 | 70 | 60 | 8-25 | 120-220 | 4P 220kw | 17.8 |
| STHP 400 | C1 | 1400 | 330 | 280 | 26-51 | 270-630 | 4P 315kw | 25 |
| STHP 400 | C2 | 1400 | 200 | 170 | 22-51 | 243-630 | 4P 315kw | 25 |
| STHP 400 | C3 | 1400 | 152 | 130 | 16-51 | 210-630 | 4P 315kw | 25 |
| STHP 400 | F1 | 1400 | 135 | 115 | 12-25 | 162-370 | 4P 315kw | 25 |
| STHP 400 | F2 | 1400 | 106 | 90 | 10-25 | 126-370 | 4P 315kw | 25 |
| STHP 400 | F3 | 1400 | 80 | 68 | 8-25 | 104-370 | 4P 315kw | 25 |
| STHP 500 | C1 | 1500 | 335 | 285 | 32-51 | 365-790 | 4P 400kw | 34.1 |
| STHP 500 | C2 | 1500 | 229 | 190 | 25-51 | 328-790 | 4P 400kw | 34.1 |
| STHP 500 | C3 | 1500 | 180 | 152 | 19-51 | 280-790 | 4P 400kw | 34.1 |
| STHP 500 | F1 | 1500 | 152 | 130 | 13-25 | 202-450 | 4P 400kw | 34.1 |
Symons Type Cone Crusher
Multi Cylinder Hydraulic Cone Crusher
Single Cylinder Hydraulic Cone Crusher – Coarse Type
Single Cylinder Hydraulic Cone Crusher – Fine Type
Why SMAT cone crusher so popular?
- SMAT cone crushers have higher production capacity and better quality;
- With a complete lubrication system, it will automatically shut down when the temperature is too high or the flow rate is too slow;
- The crushing ratio is large and the production efficiency is high. The combination of higher rotational speed and stroke greatly improves the rated power and throughput of the crusher, and improves the crushing ratio and production efficiency;
- The equipment is designed with a safety device, which greatly reduces the downtime;
- Thin oil lubrication, reliable and advanced, improve service life, unique thin oil lubrication system design, improve equipment service life. The seals are not worn, which improves the reliability of blocking dust, and fundamentally eliminates common failures such as oil-water mixing of cone crushers;
- Cone crusher is widely used, adjusting the working parameters of the crusher can crush brittle materials under any hardness;
- The operation and installation of the cone crusher is convenient, the whole equipment adopts secondary vibration isolation, the foundation vibration is small, the noise is low, and there is no need for huge foundation and anchor bolts during installation;
- The special crushing cavity and its matching speed significantly increase the proportion of fine materials and cube content of the product, greatly reduce the needle-like materials, and the particle shape is more excellent;
- Simple structure, easy maintenance and low operating cost;
- Equipped with remote touch screen operation interface to display real-time working status.
Q:Cone crusher or impact crusher, which one is better for our project ?
Cone crusher and impact crusher are both suitable for secondary or tertiary crushing. The only difference is, impact crusher is suitable for soft or medium hard material, such as limestone, andesite, decomposed rock, etc. For hard type material like basalt, river pebble, cone crusher is more suitable.
Q:How to choose suitable cone crusher?
Cone crusher normally used as secondary or tertiary crushing equipment. Which means, it will work with other equipment, like jaw crusher, vibrating screen, etc. We have engineer team specially for project solution designing, they will calculate based on your project requirement, such as the hourly capacity, material hardness, input and output size, etc.
Please contact us for free project designing.
Q:How can we check your machine quality?
We can have video conference with your team, thus we can show you our workshop and machine quality.
On the other hand, we accept third party inspection.
Q:How can you ensure your after sale service during the pandemic?
① We have professional engineers can provide both online and on-site installation and trainning.
② We have local installation team partners can prodive you turn-key installation and trainning.
