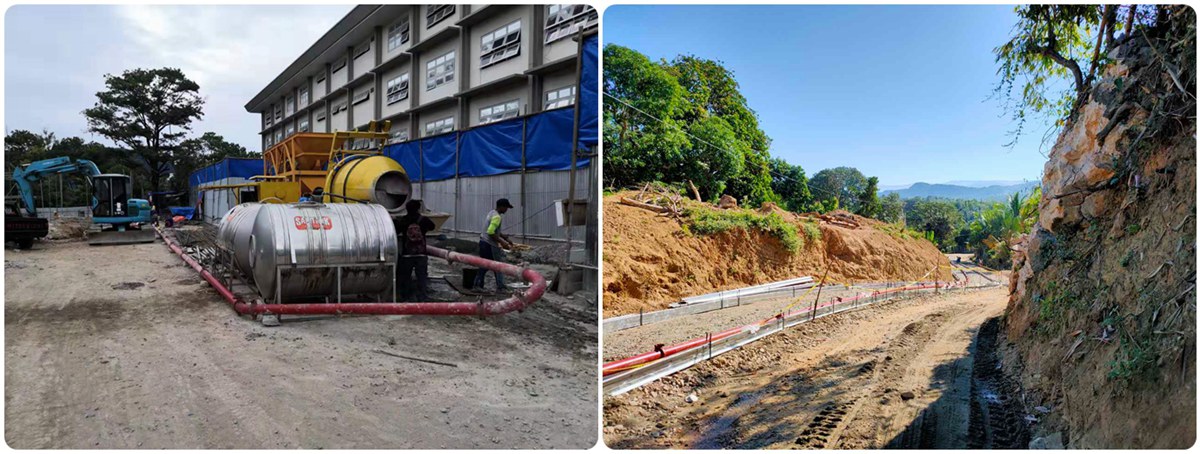

Concrete Pumping Machine Work Demonstration

Concrete Mixing Pump Supplier

SMAT, as a top manufacturer of construction industry machinery, focuses on innovative technology to manufacture better quality concrete mixer pumps. Dedicated to providing comprehensive solutions for our global customer partners’ projects.

SMAT has diesel-type and electric-type concrete mixer pumps. According to the category of pumps, there are four main types, which are trailer pump, mixer pump, boom pump, and truck-mounted pump. We can make the corresponding program according to the customer’s demand for the flow rate, pressure, and mixing capacity of the product. The actual vertical height of pumped concrete can reach 80-100 meters and the horizontal distance is 150-300 meters.

Concrete Mixing Pump Specification

Diesel Concrete Mixing Pump for Sale

JBS-30R Concrete Mixing Pump

JBS-30R concrete mixer pump is a construction equipment that integrates concrete mixing and conveying functions. Its theoretical conveying capacity is 30 cubic meters per hour, which is suitable for small and medium-sized concrete pouring projects. It is widely used in various small and medium-sized construction projects, such as concrete pouring construction of multi-story residential buildings, small commercial buildings, bridge piers, tunnel linings, etc., which can effectively improve construction efficiency and shorten construction period.

Characteristics of JBS-30R concrete mixer pump

Efficient mixing: equipped with a large-capacity mixing drum and a reasonable design of mixing blades, it can quickly and evenly mix concrete to prevent concrete segregation and initial setting, and ensure the quality of concrete.
Stable conveying: It adopts an advanced hydraulic system with strong power and high conveying pressure, which can realize long-distance and high-rise concrete conveying, and the conveying height can reach about 30 meters.
Easy operation: The control system has a high degree of intelligence and a friendly operation interface. It has functions such as pumping speed adjustment, pressure display, and fault diagnosis, which are convenient for operators to quickly get started and monitor the operating status of the equipment in real time.
Flexible mobility: The overall structure is compact, the volume is small, and the weight is light, which makes it easy to move and transfer on the construction site and suitable for working in a small space.

JBS-40R Concrete Mixing Pump

JBS-40R concrete mixer pump is similar to JBS-30R, which is also an integrated concrete mixing and conveying equipment, but its theoretical conveying capacity is larger, 40 cubic meters per hour, which can meet the needs of larger-scale concrete pouring. It is used for concrete pouring construction of large-scale construction projects, such as high-rise buildings, large commercial complexes, large bridges, tunnels, etc., and is especially suitable for projects with high requirements for concrete conveying capacity and conveying height.

JBS-40R Concrete Mixing Pump

Electric Concrete Mixing Pump For Sale

An electric concrete mixing pump is a device that uses an electric motor as its power source, integrating a mixing system (drum or forced type) and a hydraulic piston pumping system on a single trailer chassis. It not only achieves uniform mixing of concrete, but also delivers it continuously and accurately to the construction site through pipelines. Its core feature lies in its triple functionality: “electric drive + mixing + pumping.”

An electric concrete mixing pump uses an electrically driven mixing mechanism to uniformly mix cement, aggregate, water, and admixtures. It then uses a hydraulic reciprocating piston to pump the concrete through a pipeline to the pouring location.

JBS-30E Concrete Mixing Pump

JBS-30E is an electric-driven concrete mixer and conveyor that integrates concrete mixing and pumping functions. It has a theoretical conveying capacity of 30m³/h and is designed for small and medium-sized construction projects, especially for construction scenarios with sufficient electricity and high environmental protection requirements.

JBS-40E Concrete Mixing Pump

JBS-40E mixer pump is an upgraded high-power electric mixer pump with a delivery capacity of 40m³/h. It adopts a reinforced structural design and is suitable for medium-sized commercial buildings and continuous operation scenes, taking into account high efficiency and low energy consumption.

Diesel Concrete Trailer Pump for Sale

Diesel HBT40R Concrete Trailer Pump

Concrete trailer  pump HBT-40R is a diesel-driven small and medium-sized trailer concrete pump with a theoretical delivery capacity of 40m³/h. It adopts a hydraulic open system and is designed for rural construction and small construction sites. It can operate without an external power supply. The power system adopts a Yuchai/Weichai 42kW diesel engine

Diesel HBT-60R Concrete Trailer Pump

Concrete trailer  pump HBT-60R is a medium-sized diesel trailer pump (delivery capacity 60m³/h), adopts a closed hydraulic system, features high cost performance and adaptability to complex terrain, and is suitable for medium-sized construction projects. It is used in the construction of 6-15-story buildings, pouring of small and medium-sized bridge piers, auxiliary delivery of commercial concrete stations, and construction in plateau areas (altitude ≤3000m)

Diesel HBT-80R Concrete Trailer Pump

Concrete trailer  pump HBT-80R is a high-power professional-grade drag pump (delivery capacity 80m³/h), equipped with a high-pressure closed system, designed for the continuous operation requirements of large-scale projects, and supports high-strength concrete delivery. Weichai 120kW turbocharged diesel engine, dual fuel tank design (endurance 16 hours).

Diesel HBT-90R Concrete Trailer Pump

Concrete trailer  pump HBT-90R is a flagship diesel trailer pump (with a delivery capacity of 90m³/h), adopts electro-hydraulic proportional control technology, represents the industry’s top performance, and is specially developed for super high-rise buildings and large infrastructure projects. It uses Cummins QSB150kW engine and has a maximum theoretical delivery capacity of 110m³/h (C30 concrete).

Electric Concrete Trailer Pump for Sale

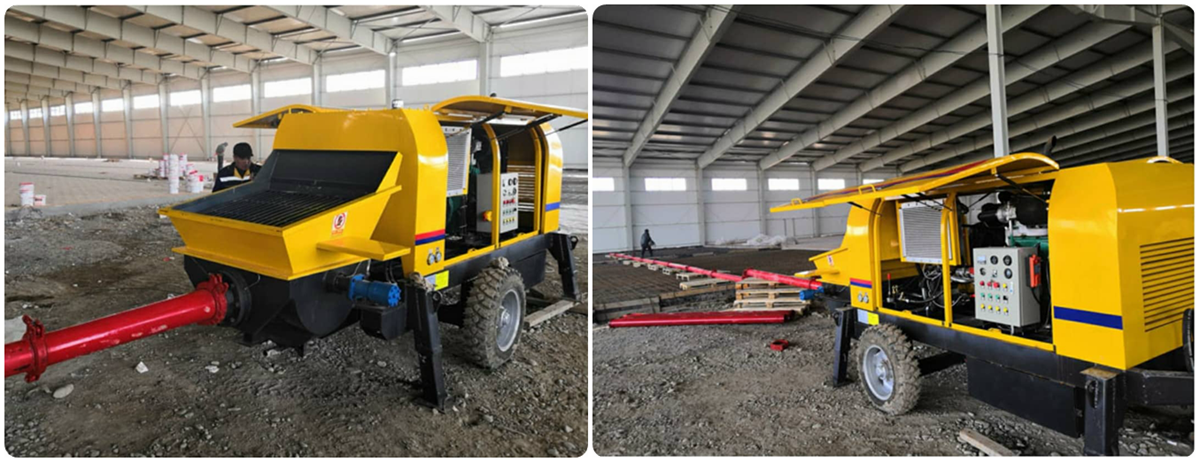

An electric concrete trailer pump is a concrete pumping device mounted on a towable chassis, powered by a three-phase electric motor. The electric motor drives the hydraulic system, which in turn generates reciprocating motion in the hydraulic cylinder piston, continuously and efficiently pumping concrete along a pipeline to the construction site. It is widely used in construction sites with no exhaust emission requirements or a stable power supply.

Electric trailer concrete pump = trailer chassis + electric motor drive + hydraulic double-cylinder piston pumping system.

Electric HBT40-E Concrete Trailer Pump

HBT40-E is a 40m³/h pure electric trailer pump, driven by 380V industrial power supply, specially designed for urban environmentally sensitive areas and indoor construction, to achieve zero-emission concrete transportation.

Electric HBT60-E Concrete Trailer Pump

HBT60-E is a 60m³/h industrial electric trailer pump, equipped with a permanent magnet synchronous motor, integrating IoT technology, and focusing on high-precision continuous pouring scenes.

Electric HBT80-E Concrete Trailer Pump

HBT80-E is an 80m³/h high-voltage electric trailer pump, using a 10kV high-voltage direct drive solution, breaking through traditional power restrictions and achieving 90% of the diesel version of the pump

Electric HBT90-E Concrete Trailer Pump

HBT90-E is the world’s first 90m³/h intelligent electric trailer pump, integrating digital hydraulics and edge computing, defining the concrete transportation 4.0 standard.

What are the common faults of concrete pump?

Location of easily blocked pumps and troubleshooting methods
1. Blockage at the outlet of the distribution valve. The outlet is blocked. Usually, the pumping system is suddenly interrupted, and there is an abnormal sound. The equipment has strong vibration, but there is no corresponding vibration in the pipeline.
Troubleshooting method: Pour cement slurry into the hopper, repeatedly start the pump in forward and reverse directions, and force the passage to open. If this method does not work, it can only be manually eliminated. Remove the connecting pipe and remove the debris in the valve.

2. The feed port is blocked. Usually, the pumping action and hydraulic system are normal, without abnormal sound and vibration. There are large aggregates or lumps in the hopper, which are stuck or arched at the feed port.
Troubleshooting method: Make the pump run in reverse to destroy the lumps, return the concrete to the hopper and re-mix it, and then pump it forward. If it does not work, it needs to be manually cleaned and eliminated.

3. The concrete delivery pipeline is blocked. When the delivery pressure gradually increases, but the material level in the hopper does not drop, the pipeline outlet does not discharge material, the pump vibrates, and the pipeline is also accompanied by strong vibration and displacement, it can be determined that the pipeline is blocked. Judgment of the blockage location: Blockage generally occurs in bends, cones, and vibrating areas.

At this time, you can use a small hammer to knock along the pipeline. The dull sound is the blockage; the crisp sound is normal. Listen with your ears. It is normal to have a rustling sound, and it is a piercing sound. The blockage at the pipe valve is gradually formed. The main reason is that after the concrete is pumped, it is not rinsed with high-pressure water in time, causing concrete to remain in the pipe. Over time, it gradually thickens, accumulates and consolidates, causing blockage. Troubleshooting method: After the concrete is pumped, be sure to rinse the pump body and S pipe with high-pressure water. When flushing is ineffective, you can use a brazing knock to remove the residue until it is completely clean.
